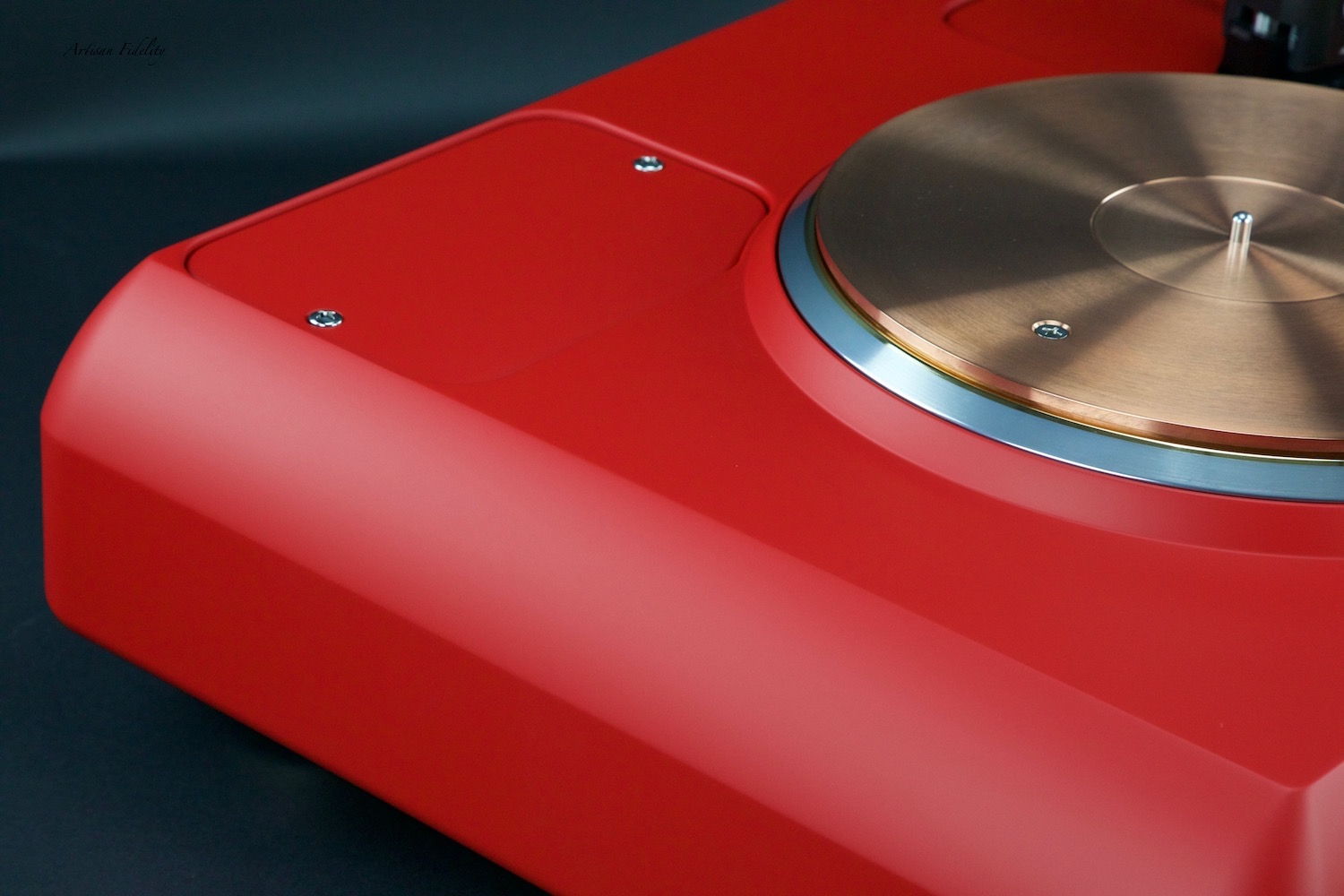

Technics Sp10Mk3 NGS Ferrari Corsa Red Micro Suede
"Just opened the two crates. Totally impressive. Much better than my already high expectation."
"Amazing deck. Loving the NGS + 4point + Fuuga, much better than the Air Force One."
W.N., Hong Kong
"Nothing has ever come closer to my cherished first generation Master Tape safety copies than LP playback on the NGS direct drive."
Leonard L., Michigan
Announcing the flagship Technics Sp10Mk3 NGS by Artisan Fidelity, this model represents a no holds barred direct drive platform utilizing the fundamental drive architecture of the legendary professional studio system originally conceived and developed by Technics Matsushita Japan in the early nineteen eighties. This final design effort was in essence the companies crown jewel professional studio direct drive model and represented the culmination of engineering knowledge gathered through many years of Sp10 manufacturing and evolution. The daunting task required for a company to develop, test and produce a direct drive possessing a similar level of comprehensive engineering in today's marketplace would be in a word, stratospheric and cost prohibitive. Fortunately, through extended listening trials in conjunction with modern engineering techniques, our talented design team was able to further cultivate and subsequently engineer a state of the art turntable model using this legendary and highly sought after direct drive motor system solely as a blueprint. The evolution of Artisan Fidelity's continuing and ongoing designs using optimized conventional and direct coupled based turntable models based on the Technics Sp10Mk3 drive platform over past years has lead us to this final NGS iteration, a no expenses spared flagship design, engineered and crafted from the ground up with absolutely zero compromise. Indeed, the playback capabilities of the Technics Sp10 Mk3 NGS platform easily exceed and surpass both conventional plinth type designs and direct coupled designs. Beginning at the top, the original heavy rubber platter mat has been replaced with a bespoke high purity Copper platter mat precision cnc milled to fit the stock main platter like a glove. Moving downward, the bearing cavities worn factory thrust pad has been replaced with a highly superior ultra low coefficient of friction (ASTM measured below 0.030, Lubricated) advanced copolymer, possessing lower noise floor and superior wear resistance over the stock graphite composite factory thrust pad. The NGS model's playback characteristics include a drastically lower noise floor, superior channel separation, enhanced clarity and focus / image specificity along with unrivaled transparency. While listening, clients quickly point out the energy, life, timbre and breath typically only heard by first generation 1/4" and 1/2" 15 ips open reel tape recordings which they are now experiencing for the first time during LP playback on their Technics Sp10Mk3 NGS models. The experience is transformative and literally like nothing we have heard thus far with any direct drive based front end. Residing within the plinth cavity is a Technics Sp10Mk3 motor mounted using a proprietary austenitic steel precision motor coupling system, which ensures intimate physical contact to the massive multilayer composite foundation and core. The fundamental plinth's architecture and infrastructure entails proprietary modeling techniques which were developed using both in room listening tests and material resonance contour software analysis. The core infrastructure consists of a mass loaded composite foundation consisting of layered German Panzerholz and synthetic Copolymers pressure sealed and mechanically coupled into an exoskeleton hull comprised of aged, heat treated aircraft grade aluminum alloy. What this unique plinth design architecture achieves is a dead silent, stable, inert base which exhibits no unusual or erratic in room resonance characteristics during playback which directly contributes to its transparent, lively and musical demeanor. Aiding to further reduce any residual DC motor vibration we have employed a proprietary Quiet Core active bearing drain module featuring integrated Stillpoints isolation technology. Stillpoints Ultra 5 isolation devices are included as standard equipment, which during listening tests proved superior to purely passive component footers. To operate the Technics Sp10Mk3 NGS, the user may opt for speed selection and Start/Stop functionality through the outboard aluminum interface module connected by a shielded umbilical cable or directly at the primary power supply chassis controller selector buttons. (*Please note: If providing donor Technics Sp10Mk3 unit, a credit of $8,000 will be applied towards model price as listed and shown above.)
Technics Sp10Mk3 NGS Production Videos -
Preliminary Service Details: Phase tracking timing bench test, Frequency and reference oscillator motor level calibration, Master Clock Crystal and auxiliary main board inspection, Power supply voltage and rails adjusted and scope checked, Removal of factory mechanical brake mechanism, Bearing cavity flush, scope inspection and cleanse, Bearing shaft micro polished and re lubricated using low viscosity hydrodynamic bearing oil prior to reinsertion, worn factory thrust pad replaced with advanced military grade copolymer with ultra low coefficient of friction, unit seated in and tested for minimum 50 hours.
Technics Sp10 Mk3 base motor Information (Data provided by Vintage Knob Database):
"By the time the SP-10MK3 was withdrawn, Yamaha, Sony, Kenwood or Pioneer all had since long abandoned that segment of the still financially valid high-fidelity market.
In comparison to its predecessor, the SP10Mk2, the drive itself sees its weight doubled from 9,5kg to 18kg. More precisely : the platter of the SP10 MK3 weighs as much as the entire MK2 drive. The SP-10MK3 is mechanically based on Technics' SP-02M cutting lathe.
Starting torque of this new ultra-low speed brushless DC motor allows a 16kg/cm spec - twice as much as that of the 1975 SP-10MK2 and... sixteen times as much as the original 1969 SP-10 ! This means a full speed ahead in 30° of a full rotation or 0,25s.
The inertia moment of the 10kg platter is of 1,1 ton/cm2... The platter has a 1,5cm copper alloy core (inner platter), supported by a diecast aluminium outer platter. 1,1 ton/cm2 is, btw, the equivalent of 1000 tonearms all tracking at 2g.
The power supply houses a very beefy and resin cast transformer (inside) and the speed and start/stop controls plus the ± 9,9% pitch control in 0,1% steps (outside). The boosted signal-to-noise ratio reaches 92db.
The EIAJ changed its DIN B measurement method in 1981 to "better measure what the ear hears". This had the effect of raising signal-to-noise ratio by about 20dB, whatever was measured."
Motor: brushless DC motor, electronic rectification, quartz-controlled phase-locked servo circuit Plater: 320mm, 10kg copper/aluminium Speeds: 33, 45 and 78rpm Pitch control: 20% Starting torque: 16kg-cm Build up time: 0.25s to 33rpm Braking time: 0.3s from 33rpm Speed fluctuation by load changes: 0% within 10kg-cm Wow and flutter: 0.015% WRMS (JIS C5521) Rumble: -92dB (IEC 98A weighted) Dimensions: 369 x 113 x 369mm Weight: 18kg net
Technics SP10Mk3 NGS by Artisan Fidelity
Overview / Specifications:
Primary Motor Drive - Technics SP10Mk3 Brushless DC Motor External Logic Controller - Technics SP10Mk3 Factory unit / serviced / 2 year warranty Interface Module - On/Off and 33/45/78rpm selector switch and Ground post Proprietary Heat treated / aged Aircraft Aluminum Exoskeleton plinth design, constrained layer damped Panzerholz and advanced Copolymer composite infrastructure. Bearing Drain - Active type using integrated Stillpoints technology Finish - Black Micro Suede (Colors optional) Dimensions - 628 x 528 x 153 mm Instrument Weight - 105 kgs. / 232 lbs. Platter Mat - High Purity Copper based alloy precision CNC milled (Replaces factory Technics stock rubber mat) Armboards - German Panzerholz, Stainless Steel and Marine Brass optional, accomodates - (2/ea.) 9"-12" effective length tonearms including tangential and fixed bearing types.
Please note: Each Technics Sp10Mk3 NGS model is individually fabricated to order, please contact us directly for production lead times, donor motors are available and in stock.
Christopher Thornton Artisan Fidelity Hand Crafted Analog Designs www.artisanfidelity.com [email protected] 219.933.8115
