Linear Tube Audio ZOTL40 Reference+ Power Amplifier (New)
Listed · 170 Views
Time Left: 5 Days
Ending: 11/29 at 03:35 PM ET
New Retail Price:$6,800.00
$6,800.00 USD
| Condition | NEW |
| Payment methods |   |
| Ships from | Takoma Park, MD, 20912 |
| Ships to | United States |
| Package dimensions | unspecified |
| Voltage | unspecified |
| Shipping carrier | FedEx |
| Shipping cost | $50.00 USD |
| Original accessories | Box, Manual |
 Average | Research Pricing |

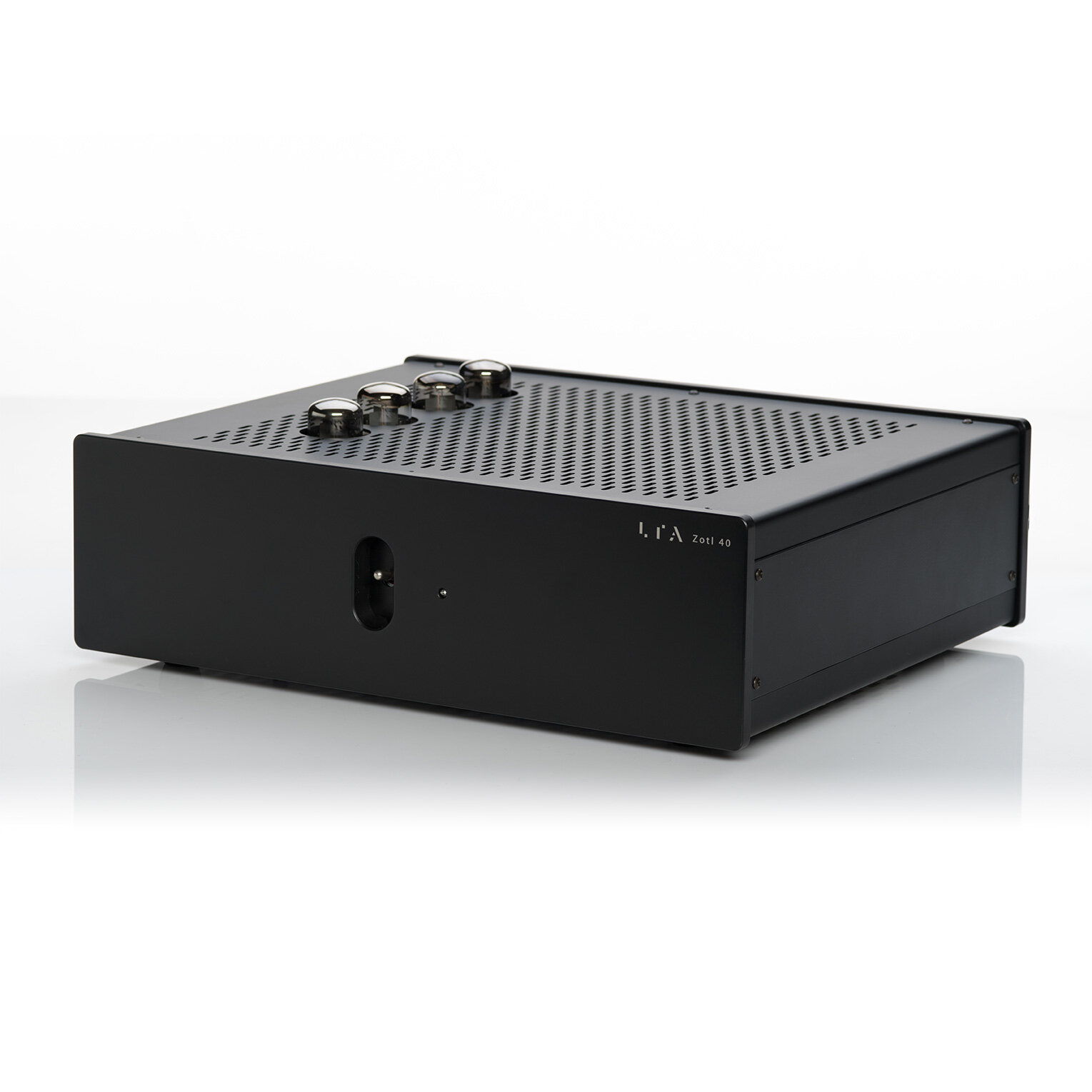

ZOTL40 Reference+ Power Amplifier
Linear Tube Audio is proud to present the ZOTL40 Reference+ amplifier.The latest iteration of LTA's EL34-based amplifier, the ZOTL40 Reference includes a new chassis, component improvements, and is supplied with NOS EL34s that take this 50 watt-per-channel amp to a new level.
The ZOTL40 uses EL34 tubes, one of the best midrange tubes ever invented, so it has very solid midrange and authoritative punch.
- LTA’s most powerful, robust sounding amp
- Room-filling soundstage with precise imaging
- Up to 51 watts per channel, perfect for speakers 85dB or above
- Premium NOS EL34 (Mullard, Tesla, or Amperex) output tubes
Reviews
"There is more meat on the bone, but it doesn’t come at the cost of clarity or detail… You get plenty of imaging and soundstaging, but there’s more interplay within the space, more interaction between performers and individual sounds." ~Part-time Audiophile"This amp plays any type of music with an unconstrained ease, and can be listened to for hours on end without fatigue. While the convincing three dimensional staging, and densely rendered imaging are fabulous, in my opinion, it is its flowing musicality that is the Z40’s true star-turn." ~Positive Feedback
Read more reviews and testimonials: https://www.lineartubeaudio.com/products/zotl-40-reference-amplifier
Specifications
- Sensitivity: 1.2V provides full output
- Output impedance: 1.6 ohms
- Input impedance: 50k
- 100V / 120V / 240V operation: Auto-switching
- Hum and noise: 94dB below full output (measured between 8Hz-60kHz +0/-0.5dB)
- Gain: 23db
- Power output with 4-ohm load: up to 51W, 0.5% THD
- Power output with 8-ohm load: up to 46W, 0.5% THD
- Frequency response (8-ohm load): 8Hz to 50kHz, +0, -.5dB
- Amplifier class: Push-pull Class AB
- Net weight: 17 lbs
- Dimensions: 17 inches (43 cm) wide, 5 inches (12.7 cm) tall, 13.875 inches (35.2 cm) deep
- Finish: Aluminum case
- Tube complement: two 12AX7s, two 12AU7s, & four NOS EL-34s - No adjustments – tubes are auto-biased
