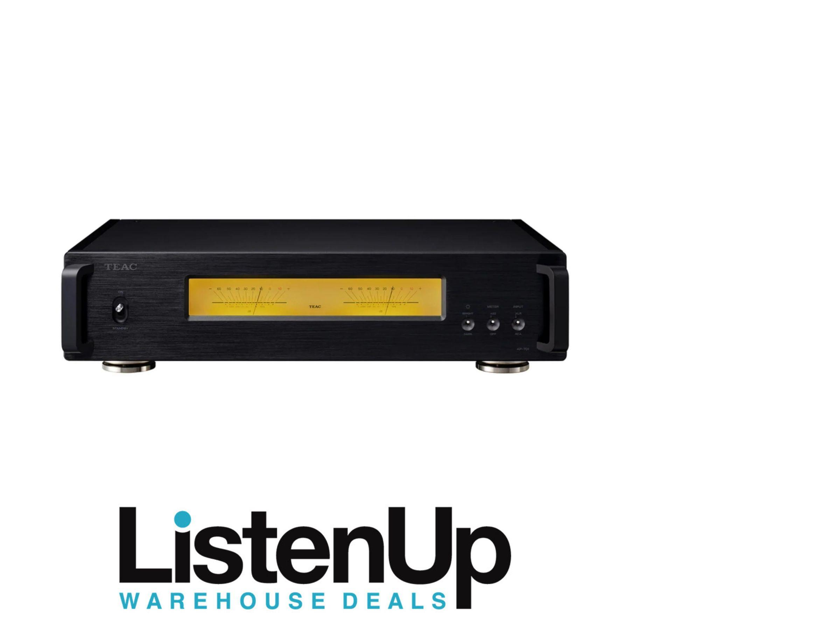

TEAC AP-701 Stereo Power Amplifier - Black

TEAC AP-701 Stereo Power Amplifier

Discover the pinnacle of audio performance with the TEAC AP-701 Stereo Power Amplifier. This high-end amplifier sets a new standard, combining cutting-edge technology with impeccable design for audiophiles seeking superior sound quality.

TEAC AP-701 Key Features:

• Complete Dual-Mono Design: Includes two toroidal core power supply transformers and two Hypex Ncore modules, ensuring outstanding channel separation and preventing interference between left and right signals.
• High Output Power: Delivers up to 260 W + 260 W* (4Ω) / 170 W + 170 W* (8Ω) for powerful, high-efficiency audio performance.
• Vibration Control: Features a flexible structure with 3mm-thick heavy sheet metal and suspension joints, minimizing vibration and enhancing sound clarity.
• Fan-Free Design: Efficient ventilation system with optimized airflow, heat dispersion, and side panel fin structure for effective cooling without noise.
• Floating Structure: Isolates transformers to reduce vibration, ensuring pristine audio quality.
• Direct Wiring: Eliminates connectors for signal clarity, with slits cut between connectors to enhance input circuit durability.
• Compact and Versatile: Reduced height and depth for easy placement in any room, from living rooms to home offices.
• Additional Features: Includes trigger input for power synchronization, large VU meters with dimmer and gain switching, and stereo/bi-amp switching for versatile audio setups.

TEAC AP-701 Specifications:

• Amplifier Section:

  • Practical Maximum Output: 260W + 260W (4Ω, 1kHz, JEITA), 170W + 170W (8Ω, 1kHz, JEITA)
  • Rated Output: 230W + 230W (4Ω, 1kHz, THD 1%), 125W + 125W (8Ω, 1kHz, THD 1%)
  • Total Harmonic Distortion: 0.003% (8Ω, 1kHz, 55W, JEITA)
  • S/N Ratio: 110dB (8Ω, 1kHz, IHF-A)
  • Frequency Response: 10Hz to 50,000Hz (+0dB, –6dB, 8Ω, JEITA)

• Analog Audio Inputs:

  • Balanced:
    • Connectors: XLR (HOT: 2)× 1 pair
    • Input Sensitivity: 1.6V
    • Input Impedance: 64kΩ (STEREO mode), 32kΩ (BI-AMP mode)
  • Unbalanced:
    • Connectors: RCA (gold-plated)× 1 pair
    • Input Sensitivity: 1.6V
    • Input Impedance: 32kΩ (STEREO mode), 16kΩ (BI-AMP mode)

• Speaker Output:

  • Connectors: Screw type × 1 pair (gold-plate, compatible with Banana plug)
  • Compatible Speaker Impedance: 4Ω to 8Ω

• External Control:

  • Trigger Input (12V TRIGGER IN):
    • Connector: 3.5mm Mono mini jack × 1
    • Input Level: 12V, 1mA
  • Trigger Output (12V TRIGGER THRU):
    • Connector: 3.5mm Mono mini jack × 1

• Power:

  • AC120V, 60Hz (US/Canada)
  • AC230V, 50Hz (UK/Europe)
  • Power Consumption: 210W
  • Standby Power: 0.4W

• Overall Dimensions: 444 (W) × 111.3 (H) × 348.2 (D) mm (including protrusions)

• Weight: 9.9kg

• Operating Temperature: ＋5℃ to ＋35℃

• Operating Humidity Range: 5% to 85% (no condensation)

• Storage Temperature Range: –20℃ to ＋55℃

• Included Accessories: Power cord, Footpad × 3, Owner's manual

Elevate your audio experience with the TEAC AP-701 Stereo Power Amplifier, designed for audiophiles who demand the best in sound quality and performance.
