GOLD NOTE DS-1000 EVO DAC/AMP!

GOLD NOTE DS-1000 EVO DAC/STREAMER/HEADPHONE AMPLIFIER!
DEMO UNIT!

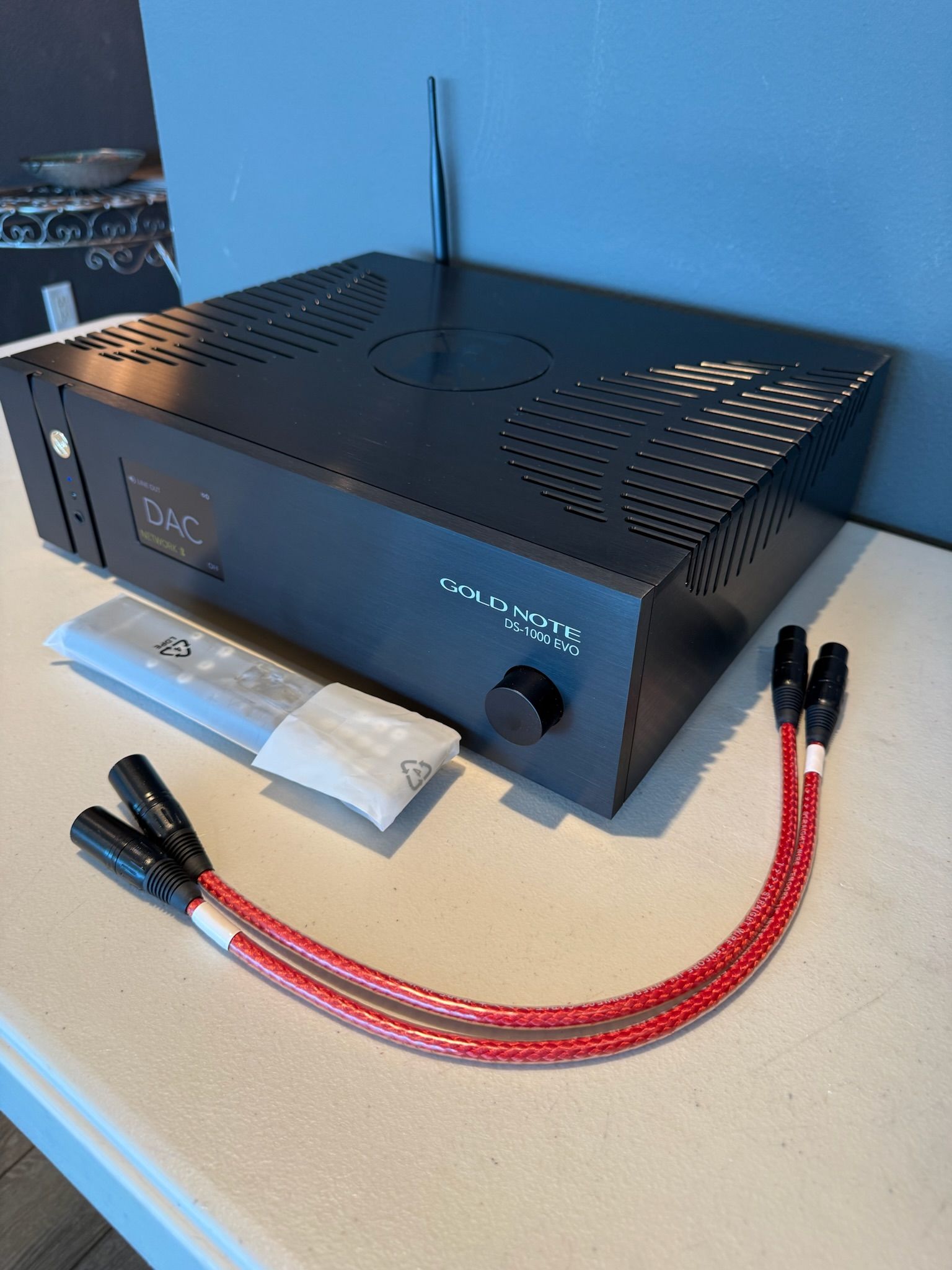

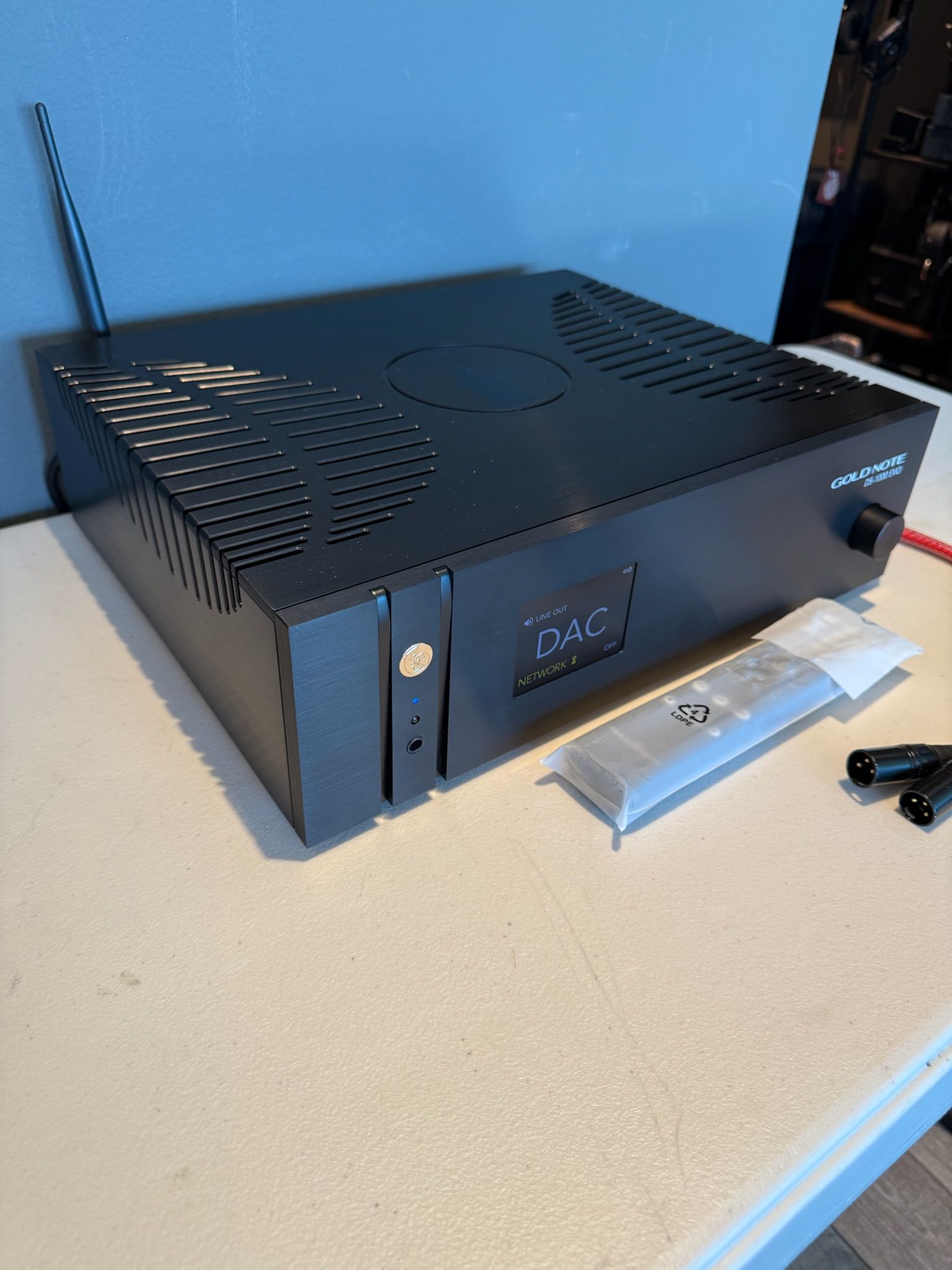

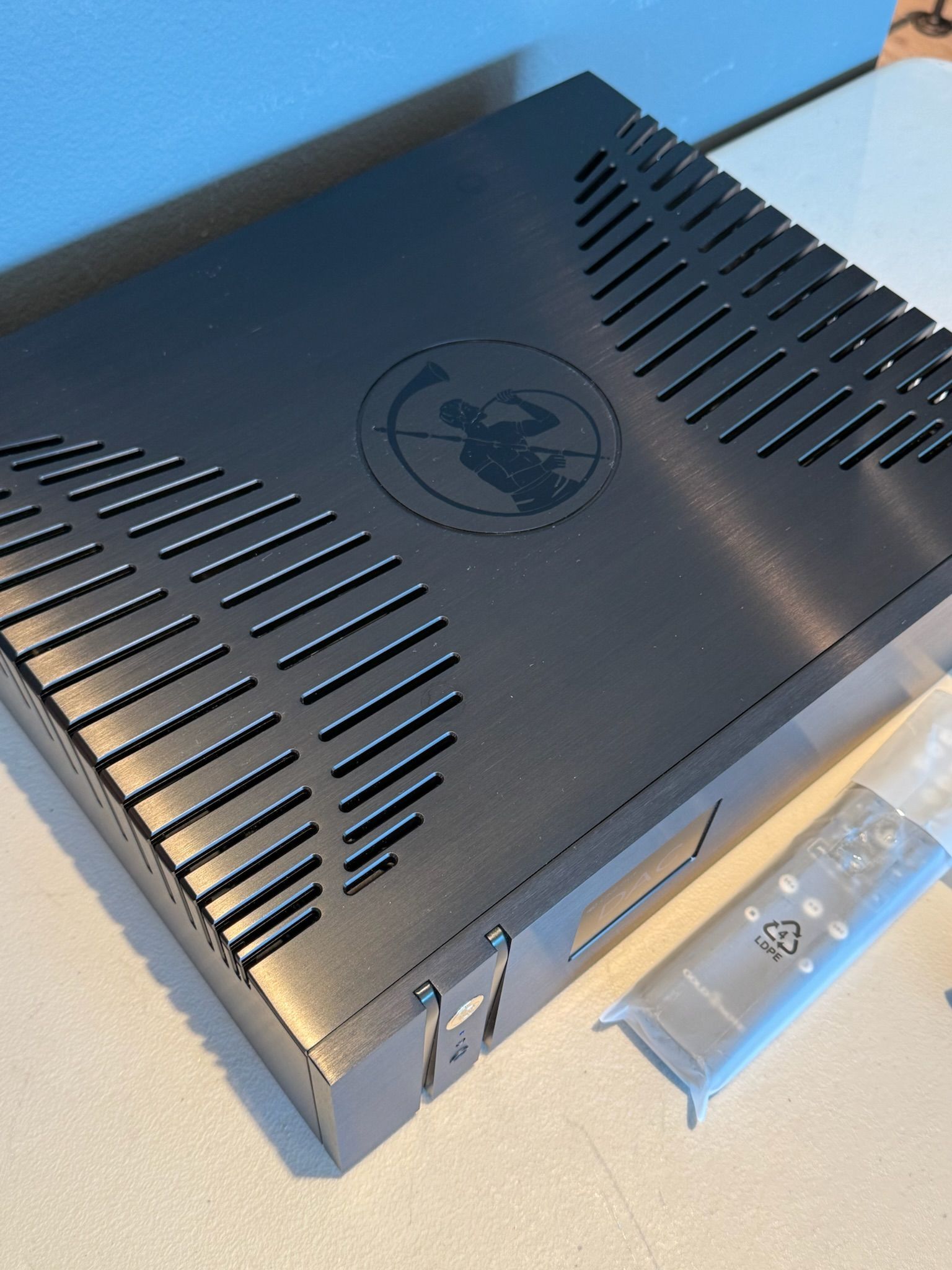

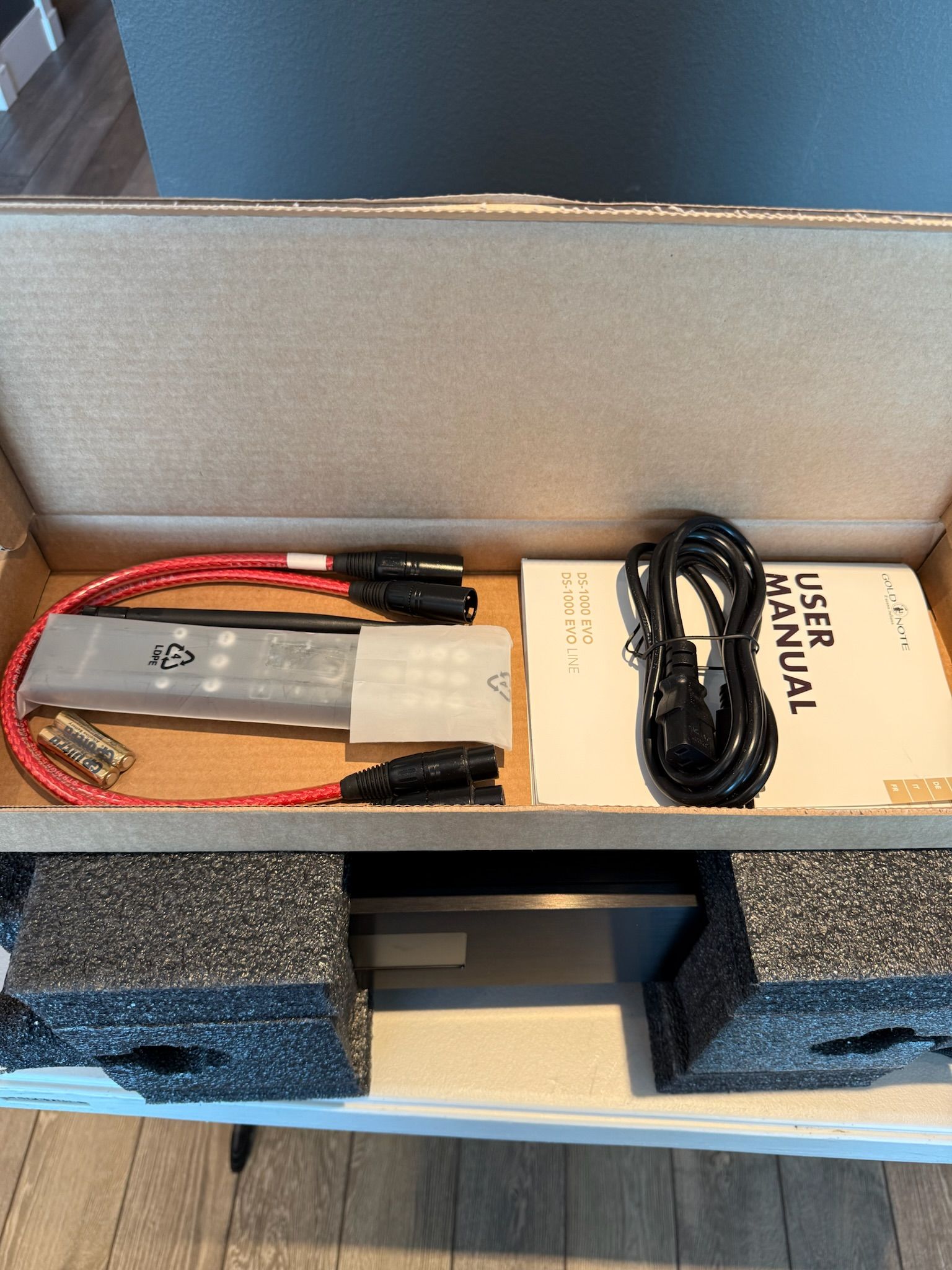

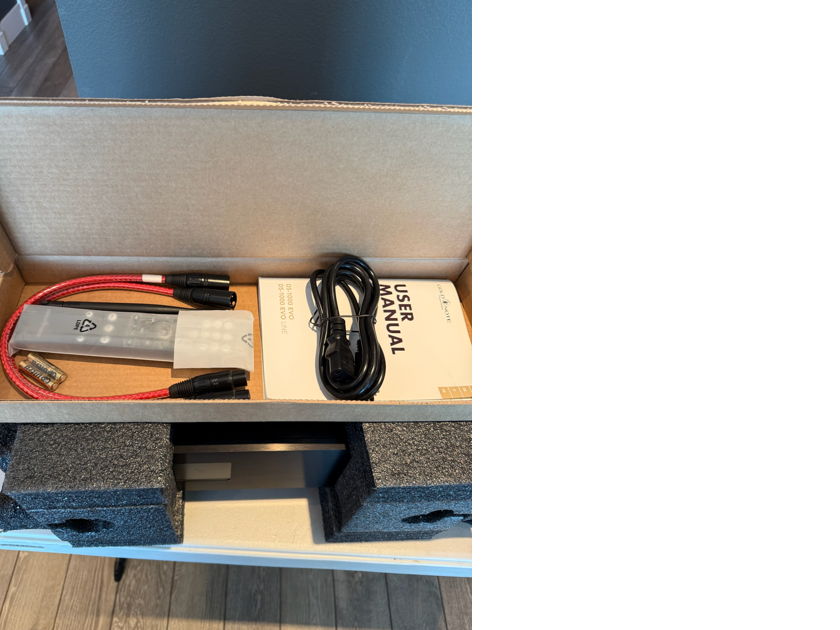

Unit is a DEMO System and is in Excellent Condition with All Original Accessories and Boxes...

ALL OFFERS need to be Submitted through the Listing! NO, We Won't Pay for Shipping!Dealer

ALL SALES ARE FINAL and Include Authorized Support!

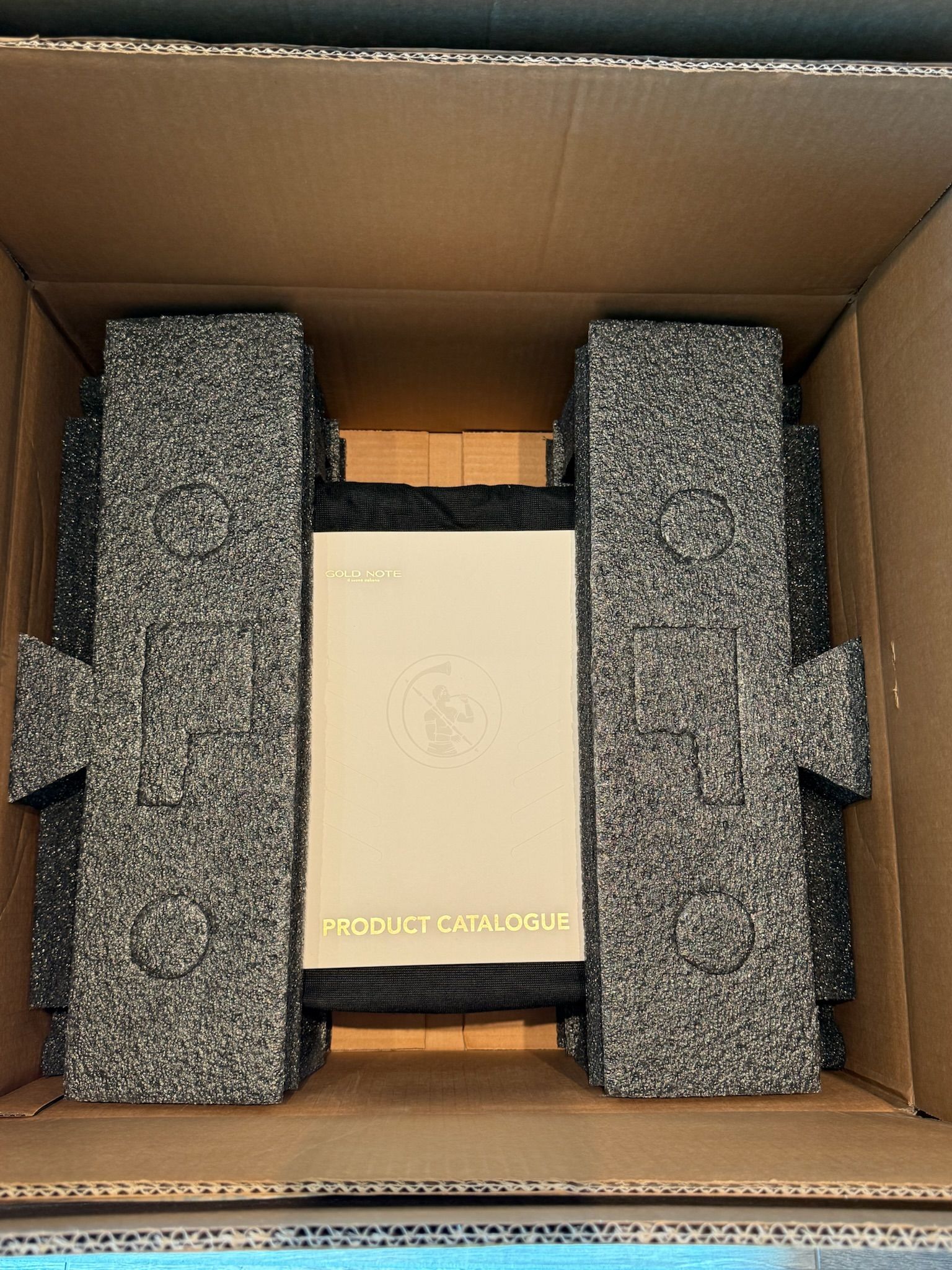

No Other Images available... Item is Boxed Up and Ready to Ship upon Completion of Sale. NO PAYPAL! We ONLY Use our Banks CC Processing...

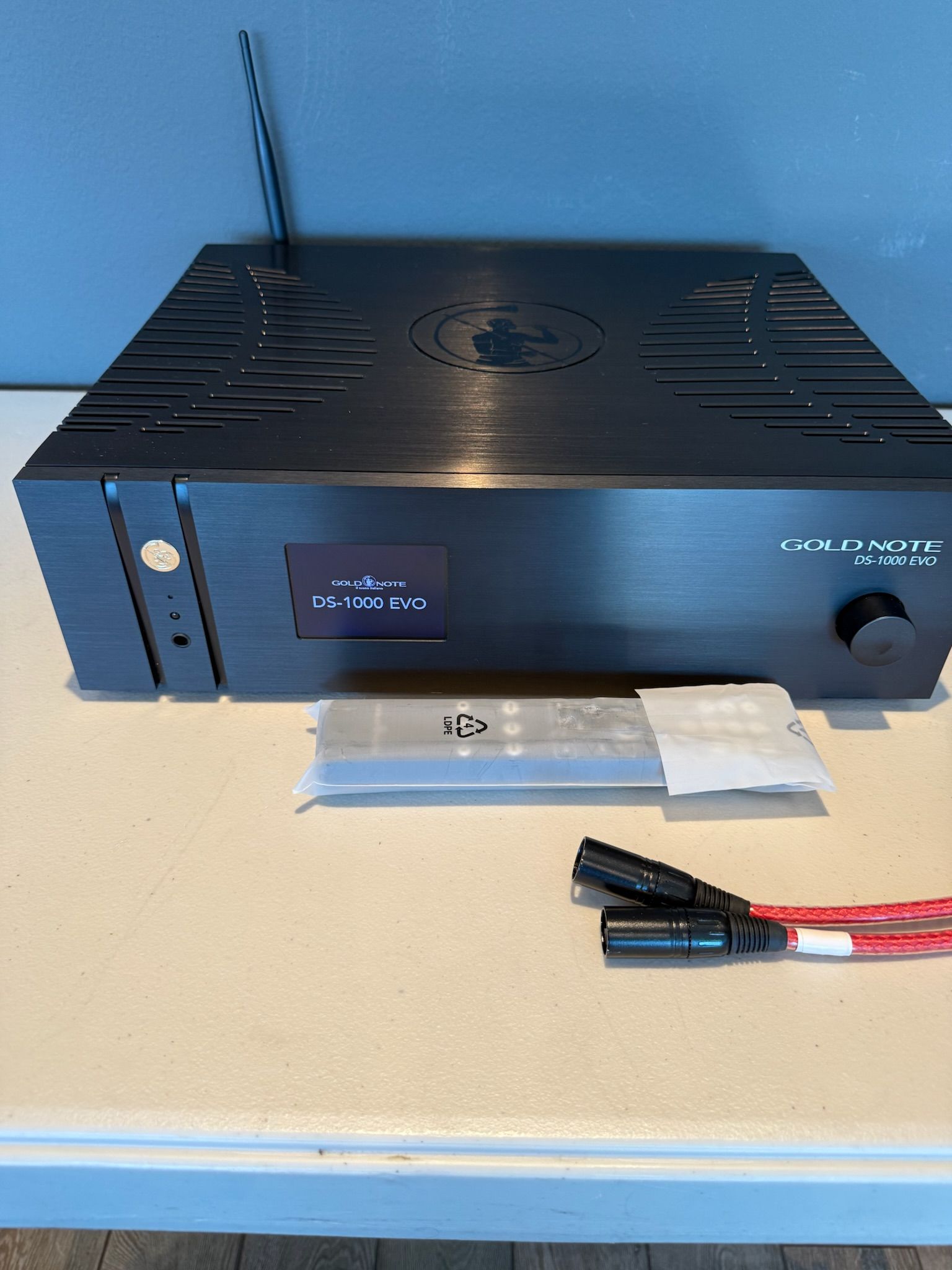

 GOLD NOTE DS-1000 EVO

The DS-1000 EVO is the most advanced streaming DAC we have ever designed, combining advanced technology solutions applied to the digital-to-analogue domain with our unique know-how in delivering compelling sound quality, or, as we call it, the Italian Sound.
The core of the DS-1000 EVO is the Dual-Mono D/A converter design, powered by two AKM AK4493 converters to ensure the highest fidelity is always preserved during the conversion stage, with virtually zero crosstalk.
Streaming is as easy as pressing play on Tidal thanks to Tidal Connect, or simply connecting your computer with a USB cable – no audio file will be a problem, supporting MQA, PCM (up to 32bit/384kHz) and DSD (up to DSD512).

Completing the design, the output stage in Class A features audio-grade discrete components selected to deliver our unique Italian sound.

STREAMING IN ULTRA-HIGH RESOLUTION

With the DS-1000 EVO, you can stream through Roon, Airplay, Tidal, MQA, Qobuz, vTuner, and Deezer. With Tidal Connect and Spotify Connect, streaming is even easier directly from within their apps. To access your collection of digital music, stored locally on a NAS or computer, you can use any UPnP/DLNA software from your smartphone or tablet. Or simply download our app GN Control (free for iOS and Android) to control all the features and functions of the DS-1000 EVO, as well as managing your music and streaming services.

HEADPHONES AMP AND LINE PREAMPLIFIER

The DS-1000 EVO models feature a professional 6.3mm headphones output with two sensitivity levels (High/Low), a proprietary technology we developed to get the best out of your headphones. The DS-1000 EVO LINE is also equipped with a Class A preamp stage to control the volume directly in the analogue domain, which can be bypassed when the unit is set to DAC mode.

ROON READY
Being Roon Ready means that Gold Note uses Roon streaming technology, for an incredible user interface, simple setup, rock-solid daily reliability, and the highest levels of audio performance, without compromise.

TIDAL CONNECT
With Tidal Connect you can stream music to your DS-1000 EVO directly from the Tidal app (available on iOS and Android).

AUDIRVĀNA
Plays with Audirvāna products are certified to play music from Audirvāna over USB or network with the best level of integration and audio performance.

SPECIFICATIONS:

MAIN FEATURES

D/A CONVERTER CHIP2x AKM AK4493FREQUENCY RESPONSE20Hz-20kHz +/-0.1dBTHD (Total Harmonic Distortion)0.001% maxSIGNAL TO NOISE RATIO125dBDYNAMIC RANGE120dBPREAMP STAGE VOLUME CONTROLAvailable only on DS-1000 EVO LINENETWORK CONNECTIVITYLAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps) Bluetooth: High Definition 5.0 (44/16)HIGH QUALITY STREAMINGRoon Ready, Airplay, MQA, Qobuz, Deezer, Spotify Connect, Tidal, Tidal Connect, vTuner
SUPPORTED AUDIO FORMATSPCM up to 32bit/384kHzDSD up to DSD256 (DSF, DFF)AIFF (.aif, .aiff, .aifc)ALACWAV (.wav) packed/unpackedFLACMP3Apple LosslessOGGMonkey’sSUPPORTED MEDIA SERVERSUPnP*DLNARoon*UPnP server must support DSD streaming to play DSD files

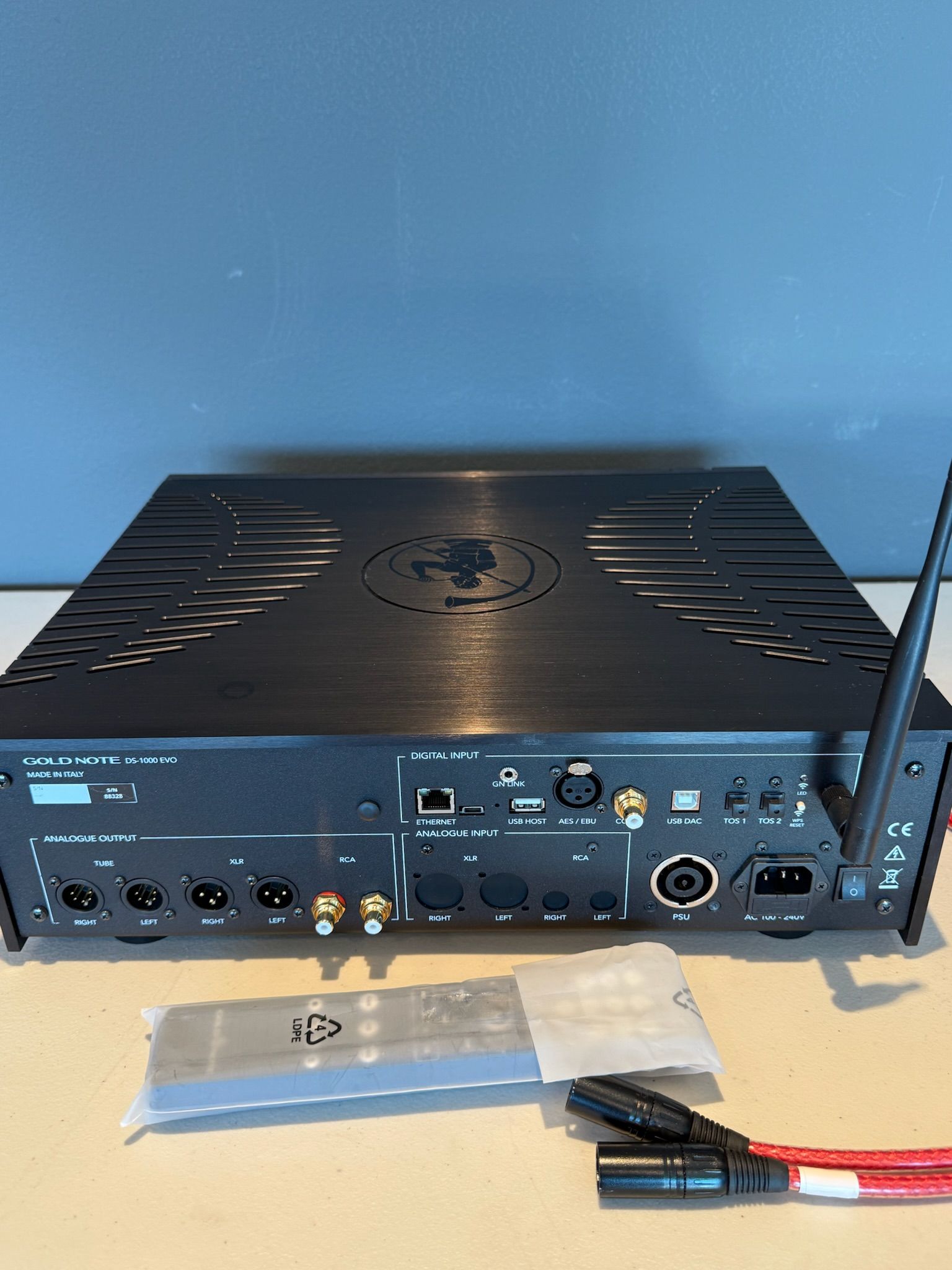

INPUTS AND OUTPUTS

DIGITAL INPUTS1x RCA coaxial PCM up to 24bit/192kHz1x AES/EBU balanced PCM up to 24bit/192kHz2x TOS-Link PCM up to 24bit/192kHz1x USB-B asynchronous up to DSD512 and PCM up to 32bit/384kHz1x USB-A port DSD256 and PCM up to 32bit/384kHz, formatted in FAT32/NTFS (32Gb max for pen drives)ANALOGUE INPUTSDS-1000 EVO LINE ONLY1x RCA unbalanced1x XLR balanced
AUDIO OUTPUTS DAC1x RCA 2Vrms1x XLR 2VrmsAUDIO OUTPUTS PREAMP1x RCA unbalanced1x XLR balanced1x headphone 6,3mm jack on front panelOUTPUT IMPEDANCERCA 50ΩXLR 100Ω


DIMENSIONS430mm W | 135mm H | 375mm D
WEIGHTKg. 10 – netKg. 15 – boxed
