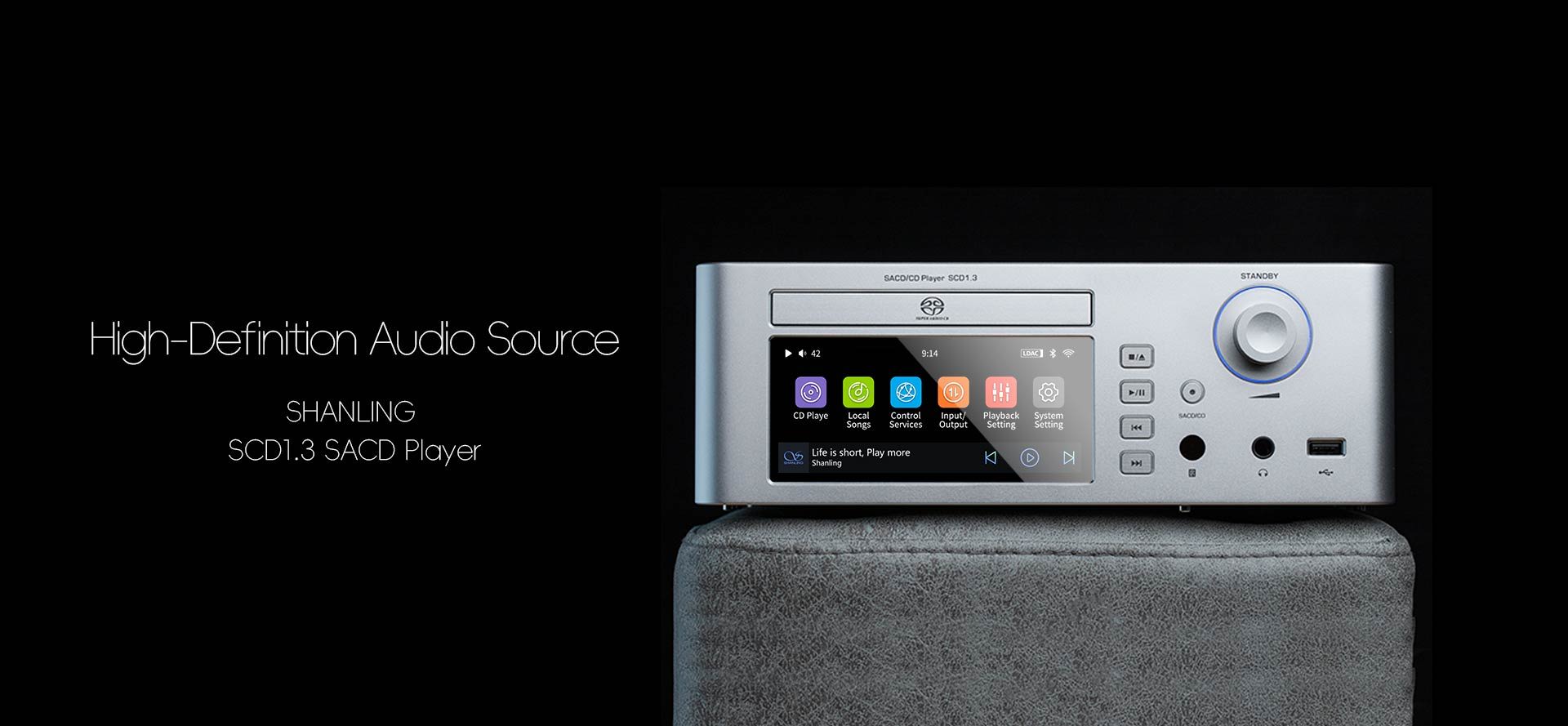

Shanling Audio SACD 1.3

Shangling SACD 1.3 SACD PLAYER ..NEW IN BOX FULL WARRANTY
COLOR IS SILVER

Digital Master Piece ..Shanling SCD1.3 SACD/CD Player Features I2S Support, AKM DAC, FPGA Circuit, Touchscreen, XLR Outputs, and Headphone Input

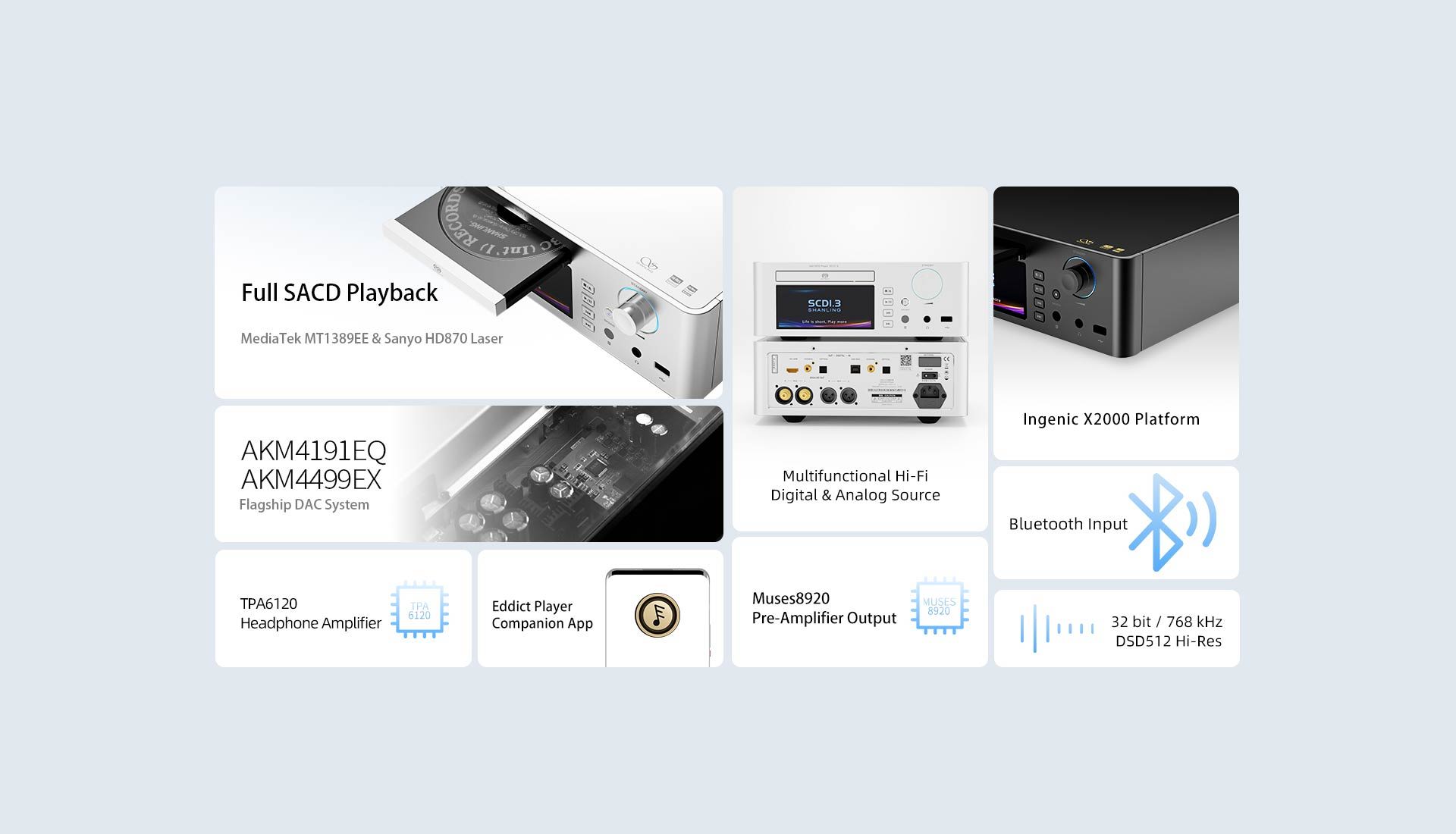

Play your SACDs, CDS, music from USB drives — as well as stream Bluetooth, Apple AirPlay, and NAS content — with the Shanling SCD1.3 SACD player. Equipped with a flagship AKM AK4499EX/AK4191 DAC system, SCD1.3 uses a precision-based volume control and MUSES8920 as the preamplifier section and can therefore be mated with power amplifiers or active speakers for a simple, go-to system. Advanced I2S support and on-board digital inputs also mean that you can hook SCD1.3 to a superior external DAC now or in the future. A dedicated FPGA circuit furthers its flexibility.

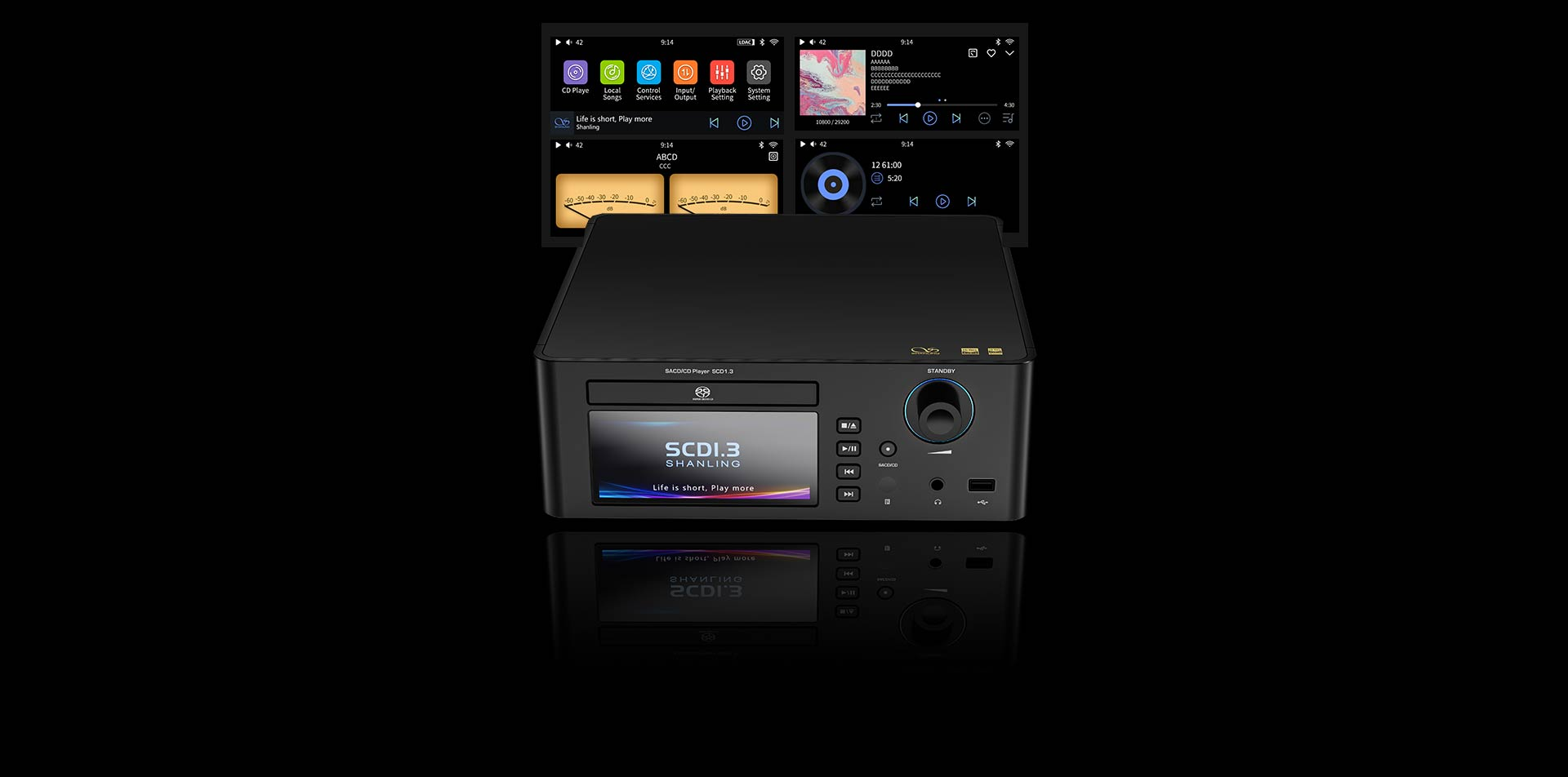

Controlled by way of a five-inch touchscreen and powered by the Ingenic X2000 platform, the 14.5-pound SCD1.3 touts the latest iteration of Shanking’s Touch system that offers you excellent speed, accurate responsiveness, and an easy-to-operate user interface. It also unlocks the device’s wireless capabilities, which extend to Bluetooth 5.0 that supports LDAC, aptX HD, AAC, and SBC along with Wi-Fi connectivity. Want to listen privately? SCD1.3 even touts an audiophile-grade headphone output with a TPA6120 headphone amplifier.

On the disc side, SCD1.3’s tray-style mechanism uses a MediaTek ME1389EE system in cooperation with a Sanyo HD870 laser to render what’s on your discs in smooth, warm, detailed fidelity — and project it with large, accurate soundstages. And when it comes to high-resolution playback, SCD1.3 supports up to 32-bit/768kHz and DSD512. Just connect it to a computer, tap its XMOS XU316 USB input, or plug your USB stick directly into the front-panel port.

 the 3.8 x 11 x 11-inch (HWD) SCD1.3 can also be commanded via a companion app. A pair of balanced XLR outputs accompany I2S, coaxial, and optical digital outputs — as well as a pair of RCA outputs. Measured with off-the-charts specs, SCD1.3 is a fantastic digital addition to any setup.

• Dimensions: 28 x 28 x 9.6 cm
• Weight: 6.6k 30lbs
• Controls: Touch Screen, Physical buttons + Volume Wheel, Remote Control, Companion app for iOS & Android
• Display: 5-Inch LG Touch panel 854 x 358

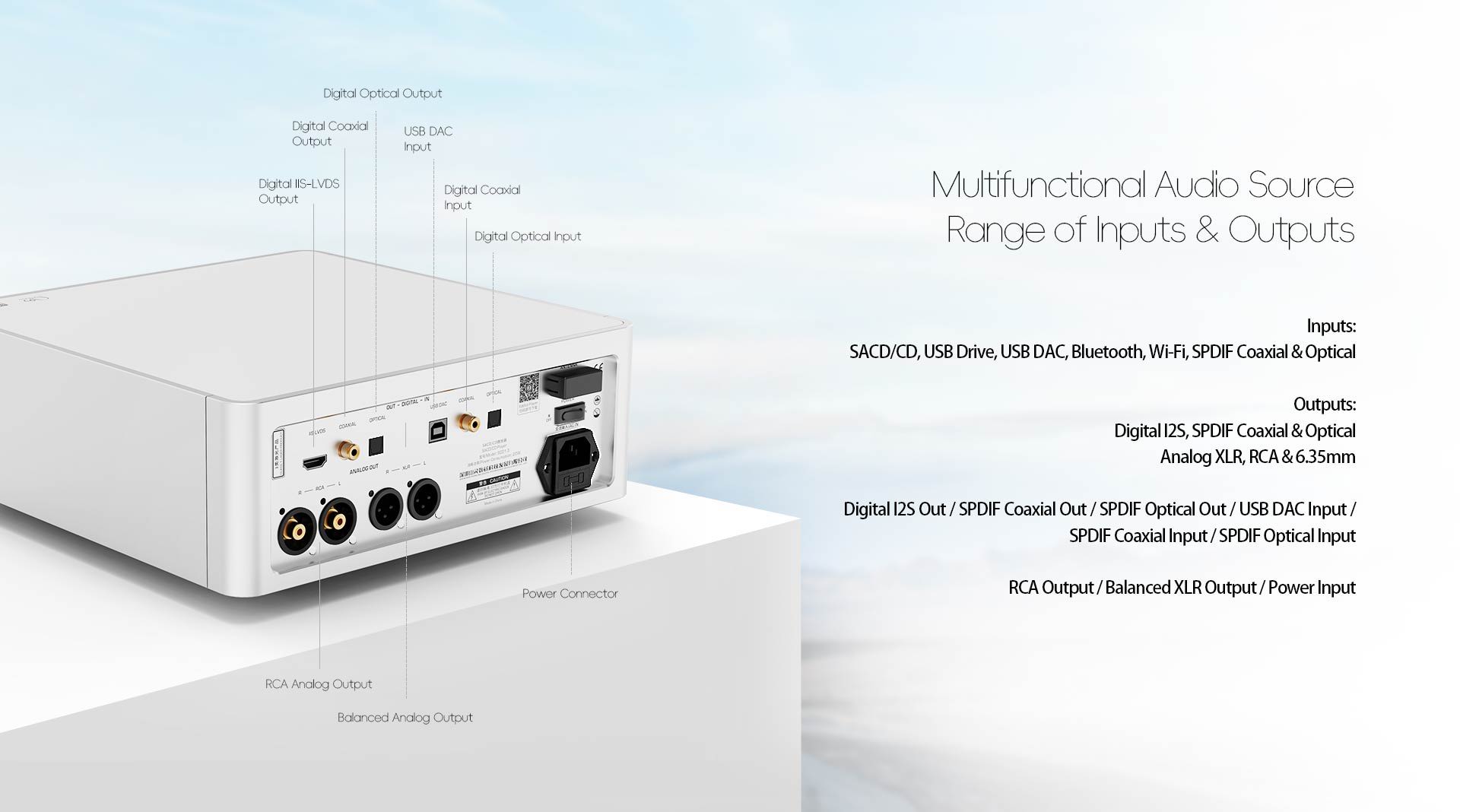

• Digital Inputs: USB Drive, USB DAC, Coaxial, Optical, Bluetooth, Wi-Fi
• Bluetooth 5.0: Support LDAC, aptX HD, aptX, AAC, SBC
• Digital outputs: I2S, Coaxial, Optical (SACD playback limited to PCM 88.2 kHz)
• Line-out/Pre-Out: RCA & XLR

• RCA output
• Output level: 2.5Vrms
• Frequency Response: 20Hz-40kHz (-0.1dB)
• THD+N: 0.0005%
• Dynamic Range: 119dB
• Signal-to-noise ratio: 119dB

• XLR Output
• Output level: 5.0Vrms
• Frequency Response: 20Hz-40kHz (-0.1dB)
• THD+N: 0.0005%
• Dynamic Range: 122dB
• Signal-to-noise ratio: 122dB

• Headphone Output
• Amplifier: TPA6120
• Output Power: 1.1 W @ 32Ω // 153 mW @ 300Ω
• Frequency Response: 20Hz-40kHz (-0.1dB)
• THD+N: 0.001%
• Separation: 75dB@32Ω
• Dynamic Range: 122dB
• Signal-to-noise ratio: 122dB
• Output Impedance: 4.7Ω

• In the box: SCD1.3, Power Cable (1), User Manual (1)

available from
Quest For Sound
www.questforsound.com
questforsound@aol.com
215-828-0712
