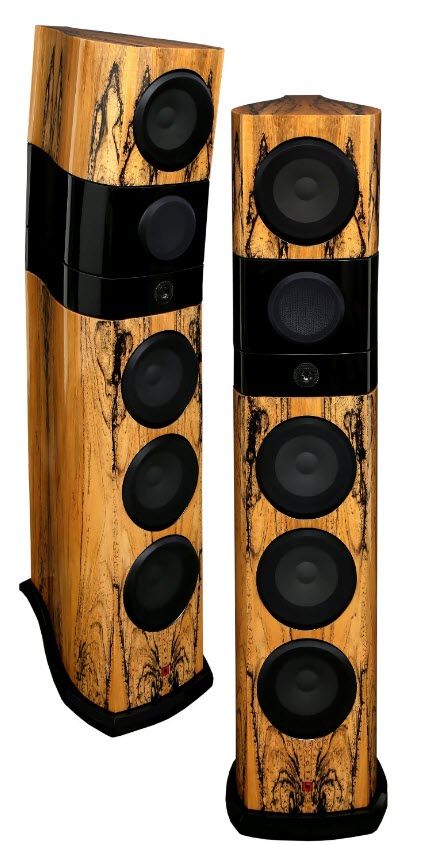

| 3-way reference monitors with proprietary lumen white driver, port, loading, and air-damping technologies. ddrivers, cabinet, crossover, and components designed, engineered, and matched for best-in-class spectrum fidelity, impulse precision, time and phase coherence, inter-octave energy balance, signal rise and settling times, and freedom from impulse memory and signal shadowing effects. cabinet constructed from custom made, variable-density, instrument- grade plywood constructed from multiple layers of specifically selected tonewoods and custom formulated bonding agent. acoustically superior to synthetic, metal, and solid wood enclosures due to a complementary materials acoustic profile, yielding a naturally damped, balanced resonance spectrum and a psycho-acoustically superior "vanishing" sonic signature. driver array latest generation, custom-designed diamond and ceramic driver array. all drivers featuring 3d, ideal acoustic cone geometry optimized for negligible impulse-delay and energy-storage effects. psycho-acoustically superior, sonically "vanishing" resonance spectrum profile when compared to alternative metal, plastic, polymer, and compound membrane technologies. next-generation driver motor topology for reduced impulse and spectrum distortion effects advancing previous generations' over and under-hung high-end transducer designs. new, extended cone excursion spider and surround technologies for reduced compression artifacts at the excursion perimeters. proprietary, minimalist crossover crossover and driver array custom designed as a unified electro- mechanical device and signal path for best resource allocation of the targeted performance envelope where it can be achieved best and with the least signal alteration. switchable bass attenuation and impedance correction for tube and solid-state amplification specifications 1,2" diamond "cell" tweeter
proprietary "cell" 6.5" ceramic mid-range transducer
four 8" custom-design ceramic membrane woofers
driver array precision-matched and resonance-tuned
impedance: 5 ohms
frequency response: 27hz – 50khz/-3db
sensitivity (1w/1m): 92db
recommended amplifier power: 20 – 150 watts
port adaptable to 27hz or 30hz for room matching
custom internal wire harness
wbt-nextgen bi-wire terminals
dimensions (h x w x d): 171 x 35 x 61 cm (each)
weight: 115 kg (each)
shipping dimensions (h x w x d): 195 x 54 x 84 cm (each)
shipping weight: 155 kg (each)
|
