McIntosh MR7083 Solid-State AM/FM stereo tuner

Product: (1) McIntosh MR7083 Solid-State AM/FM stereo tuner (Stands not included)

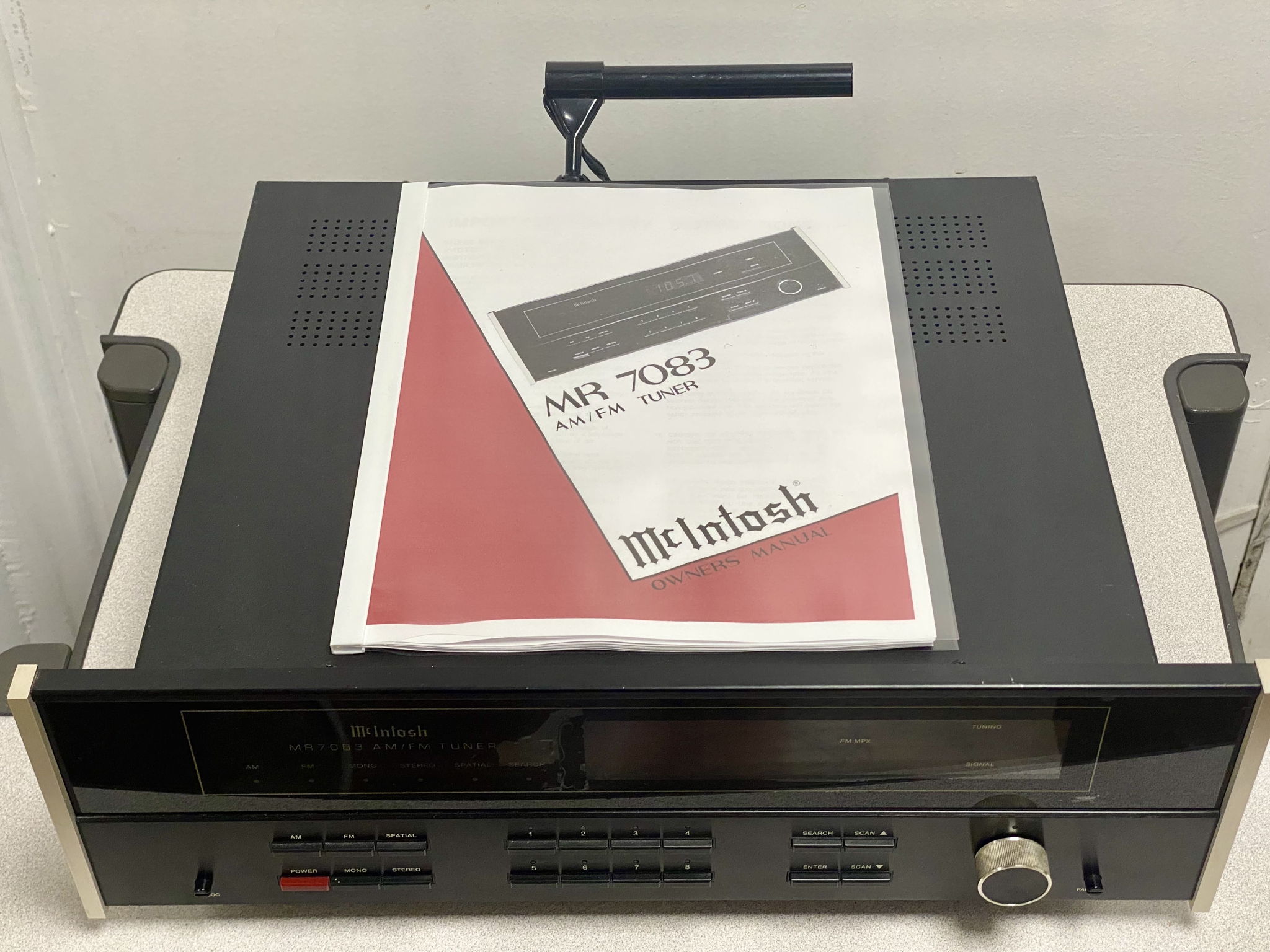

Included: (1) Copy of User Manual

                 (4) Rubber Feet Bottom Attached

The McIntosh MR7083 is a solid-state AM/FM stereo tuner, manufactured from 1990 to 1995. It's known for its advanced tuner design and features aimed at high-quality radio reception.

Functional Notes: The attached video demonstrates all functions working as expected, with the exception of the AM reception, which is noticeably weaker than the FM or other AM tuners tested in the same location. Please watch the video for full details. If you're interested, feel free to ask any questions or make an offer you're comfortable with.

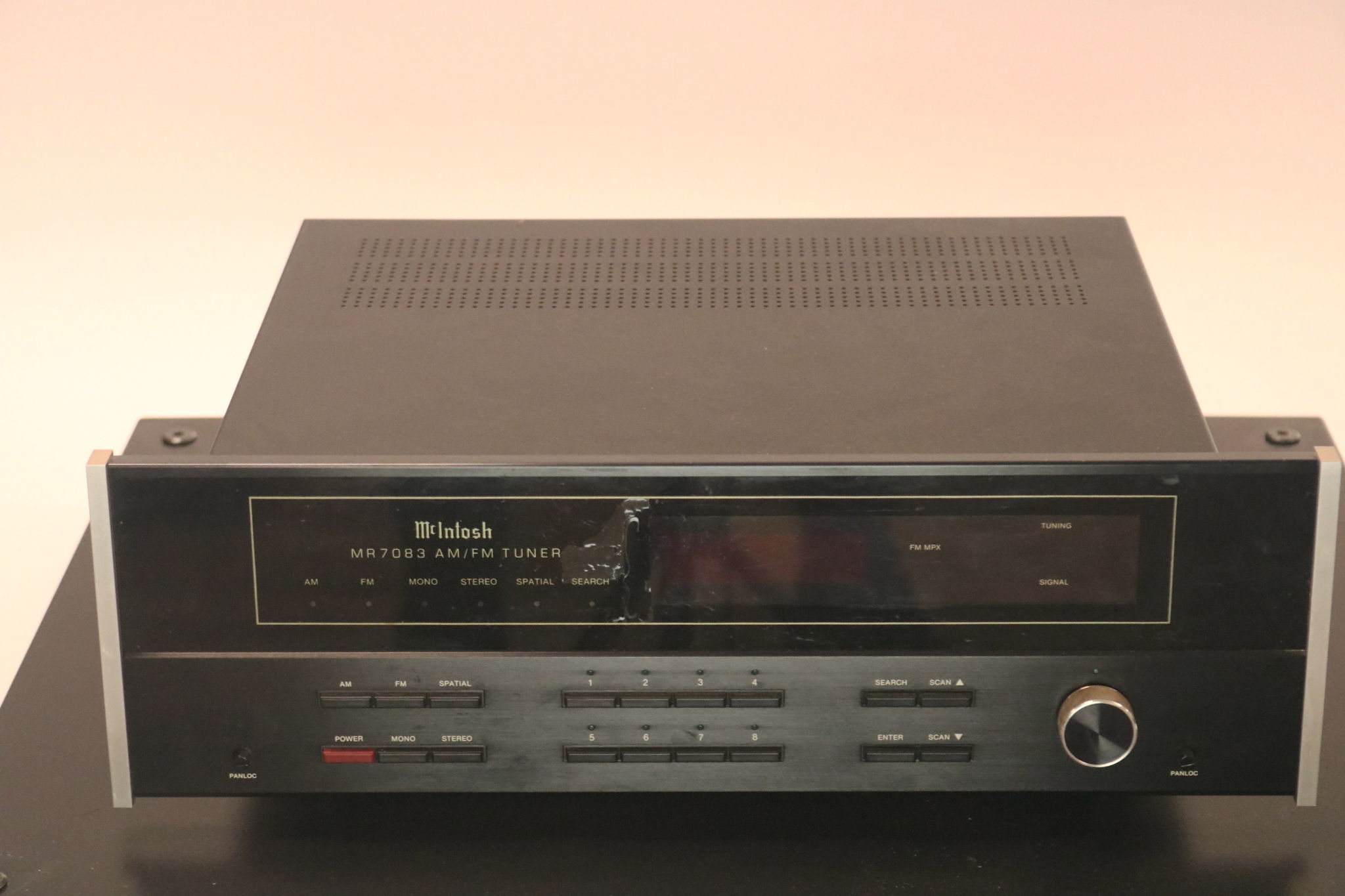

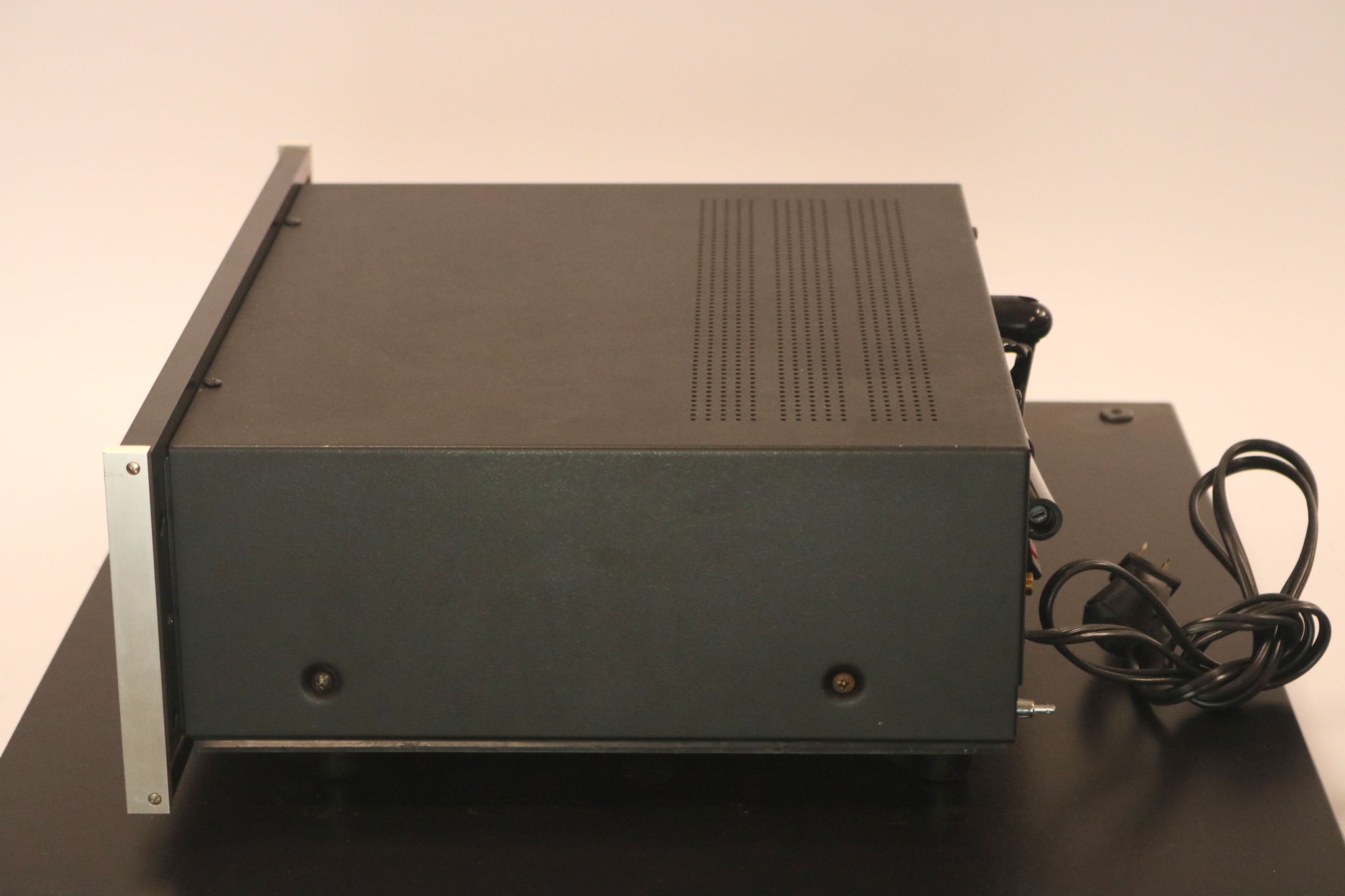

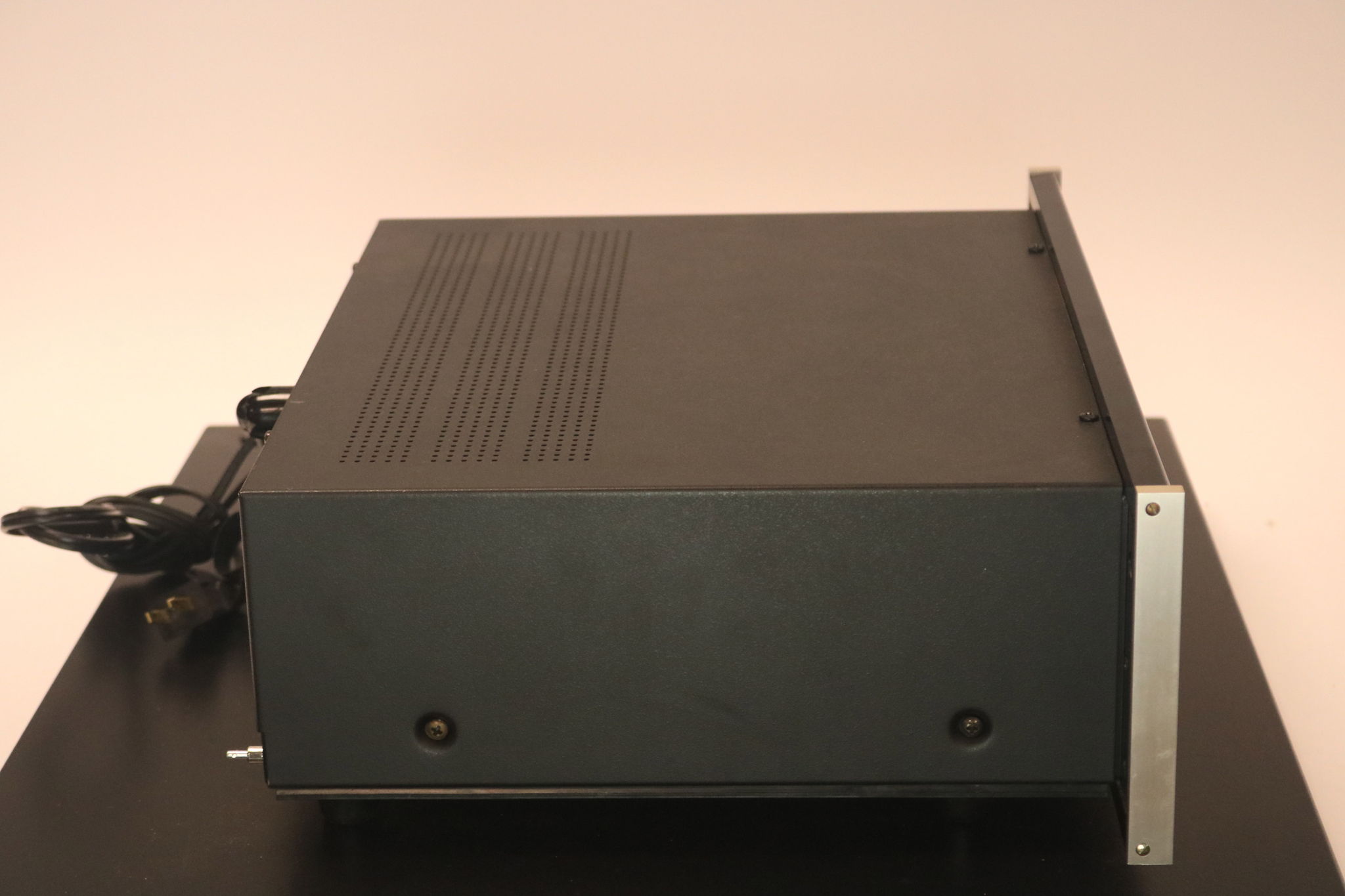

Cosmetic Description: The exteriors are in very good condition for their age, showing typical signs of use such as minor cuts, scuffs, and dust. However, the front face glass has a noticeable mark where the back film has detached, along with some bubbles. Please examine the images closely, as they may reveal other minor cosmetic imperfections not specifically mentioned.

Here are some key specifications and features of the McIntosh MR7083:

General:

• Type: AM/FM Stereo Tuner
• Manufacture Dates: 1990 - 1995
• Solid State: Yes
• Versions: Available in both a "narrow" (16-1/8" W) and "wide" (17-1/2" W) faceplate version, as McIntosh changed their standard component width around 1992 during its production run.
• Power Requirement: 120V 50/60Hz
• Power Consumption: 10 watts
• Dimensions (approx.): 16"W x 5.5"H x 13"D (narrow version)
• Weight: 15.5 lbs (net)
• Finish: Front panel is glass with special gold/teal nomenclature illumination and black with gold anodized aluminum. Chassis is black.

FM Section:

• Usable Sensitivity: 11.25 dBF (1.0 μV across 75 ohms)
• 50dB Quieting Sensitivity:
  • Mono: 15 dBF (1.6 μV across 75 ohms)
  • Stereo: 37 dBF (20 μV across 75 ohms)
• Signal To Noise Ratio:
  • Mono: 80 dB
  • Stereo: 75 dB
• Frequency Response: 20 to 15,000 Hz (+0, -1dB) (mono/stereo)
• Harmonic Distortion:
  • 0.08% at 100 Hz
  • 0.08% at 1000 Hz
  • 0.12% at 10,000 Hz
• Intermodulation Distortion: 0.08% (mono); 0.12% (stereo)
• Capture Ratio: 1.5 dB
• Alternate Channel Selectivity: 70 dB
• Spurious Response: 100dB
• Image Response: 80 dB
• Stereo Separation: 50 dB

AM Section:

• Sensitivity: 20 μV external antenna input (50 ohm source)
• Signal To Noise Ratio:
  • 50 dB at 30% modulation
  • 60 dB at 100% modulation
• Harmonic Distortion: 0.5% maximum at 30% modulation
• Frequency Response: 50 Hz to 6,000 Hz NRSC
• Adjacent Channel Selectivity: 45 dB minimum IHF
• Image Rejection: 78 dB minimum

Features & Controls:

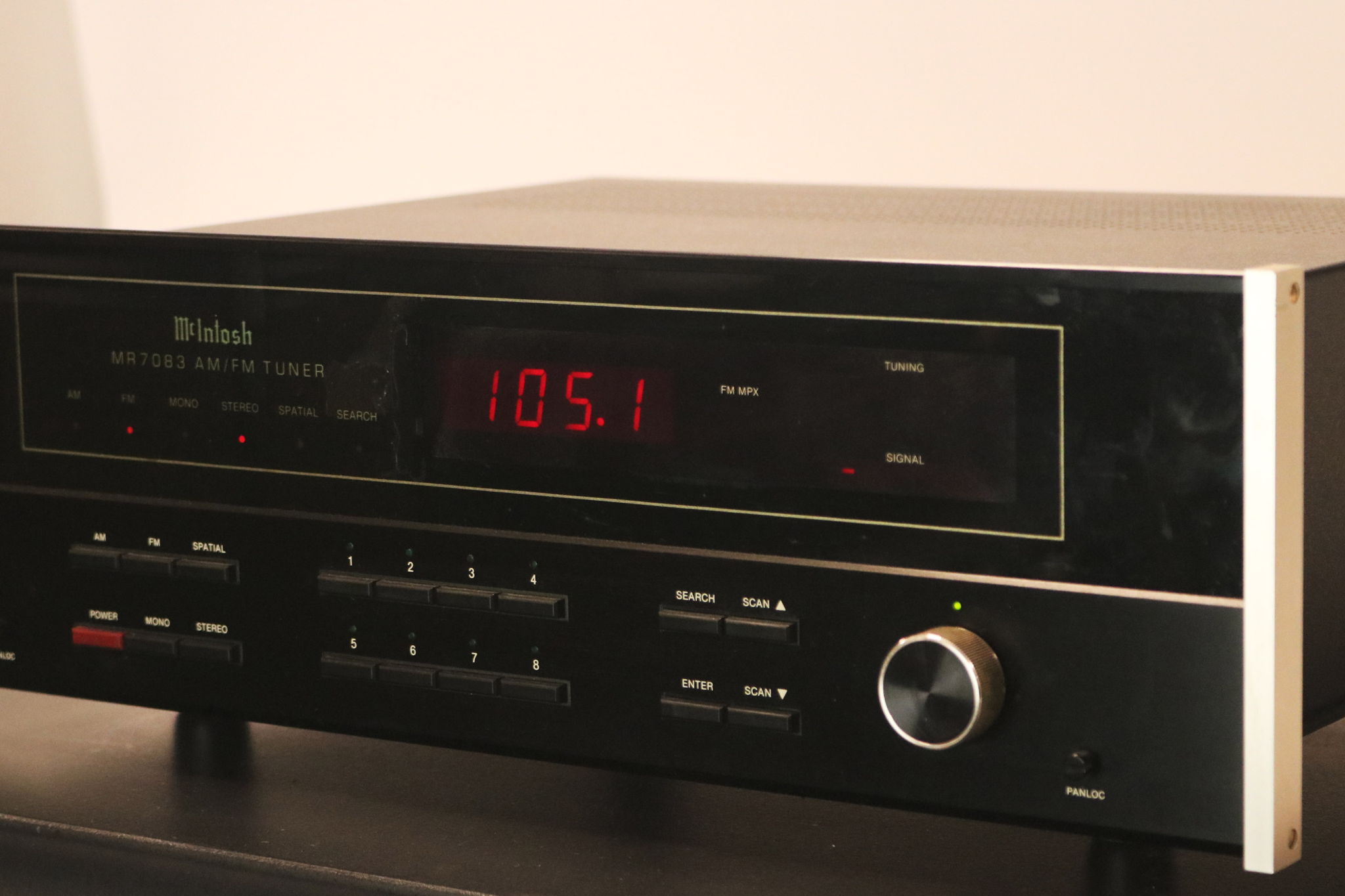

• Digital Frequency Display: Displays station frequencies digitally.
• Multiple Tuning Methods:
  • Manual tuning knob
  • SCAN up or down touchbuttons
  • Preset station touchbuttons (8 presets with indicator lights)
  • SEARCH function (previews preset stations for 5 seconds each)
• SPATIAL Audio Processor: Enhances sound for a more "stereo-like" quality and dimension, especially on noisy or weak stations (both FM and AM), while reducing noise.
• Tape Recording Circuits: Designed to suppress stereo carrier noise when making "off the air" tape recordings.
• Phase Locked Loop (PLL) Multiplex Decoder: Delivers STEREO FM with lower distortion, lower noise, and better separation.
• Flexible AM Antenna System: Supports a low-impedance loopstick for local reception, an external noise-reducing/canceling shielded loop for noisy areas, and a conventional "long wire" antenna for remote locations.
• Audio Output:
  • Fixed: 1.2 V RMS at 100% modulation
  • Variable: 1.2 mV to 1.2 V at 100% modulation (with output level adjustment)
• Front Panel Indicators: AM, FM, MONO, STEREO, SPATIAL, SEARCH, Digital frequency readout, FM MPX light, TUNING lights (lock, up, down), LED indicators for SIGNAL strength.
• Panloc System: McIntosh's proprietary mounting system for secure installation.

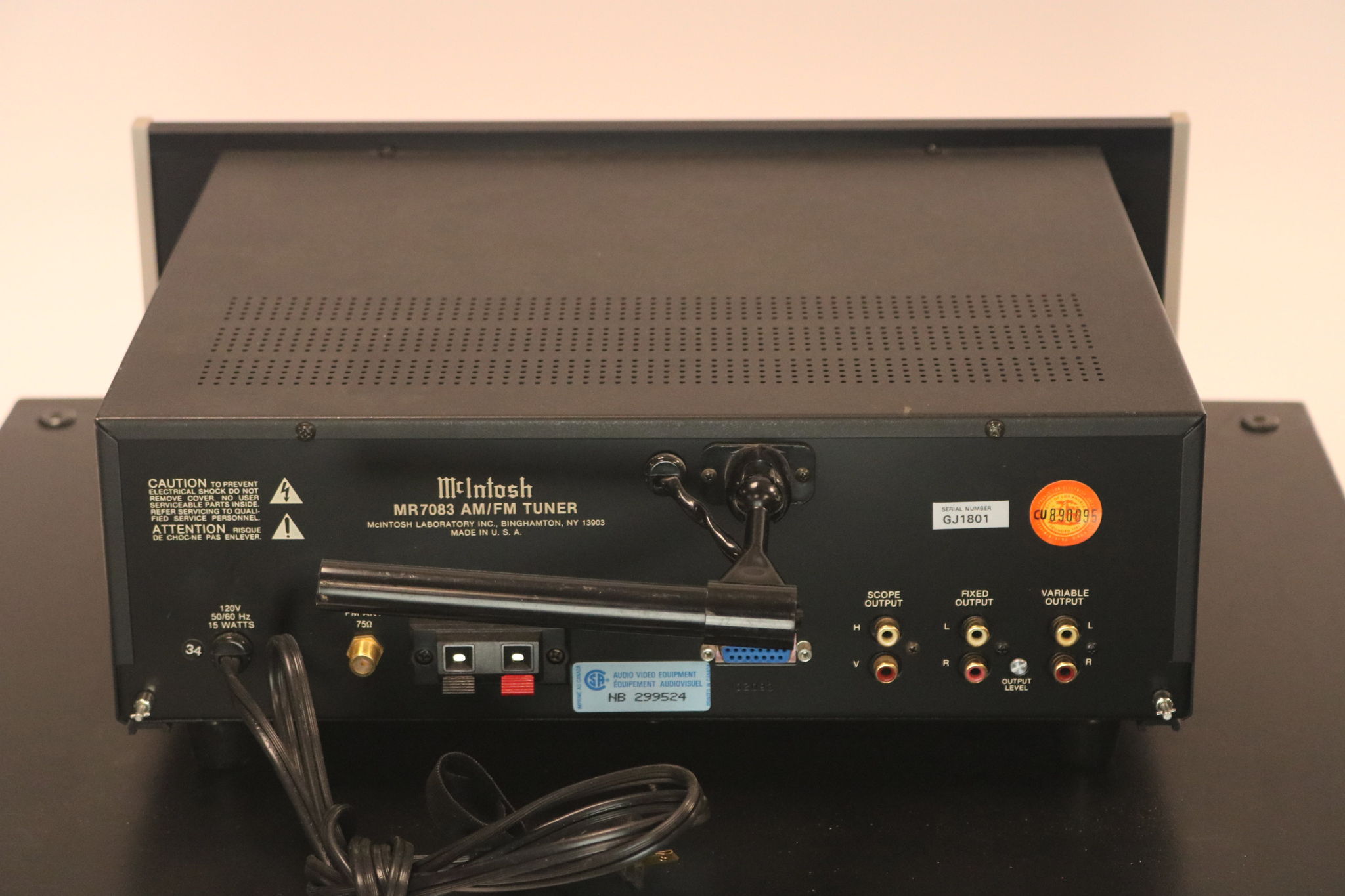

• Outputs: Fixed and Variable Left & Right audio outputs, Scope outputs (H and V).
• Semiconductor Complement: 37 Transistors; 28 Integrated Circuits; 8 Varactors; 53 LEDs; 74 Diodes.
