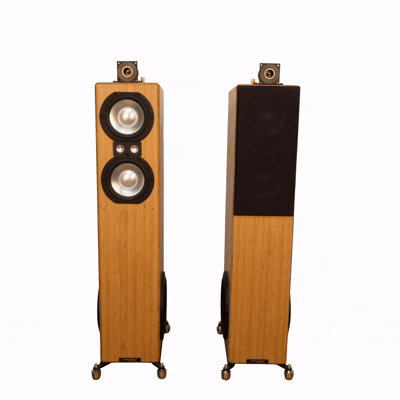

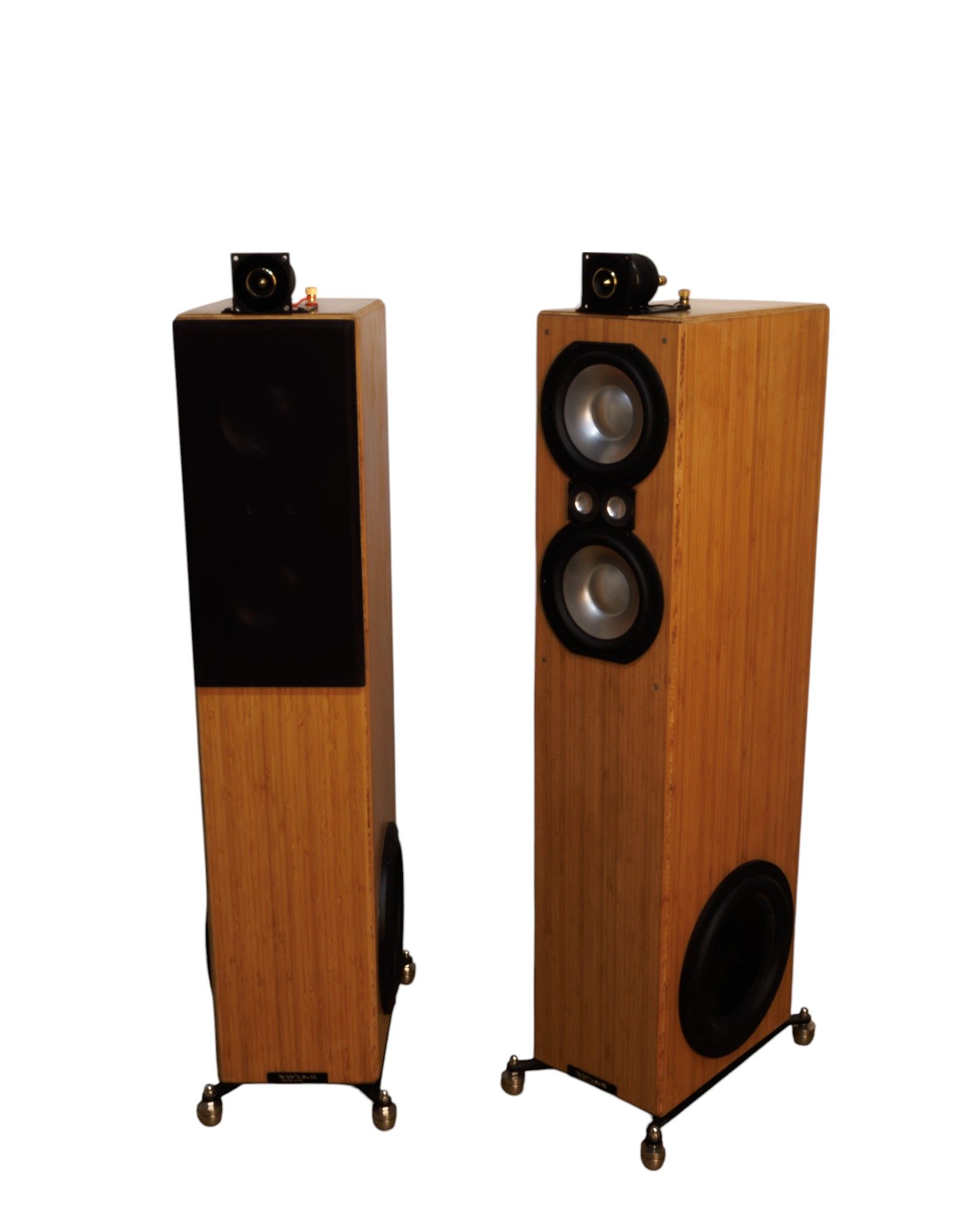

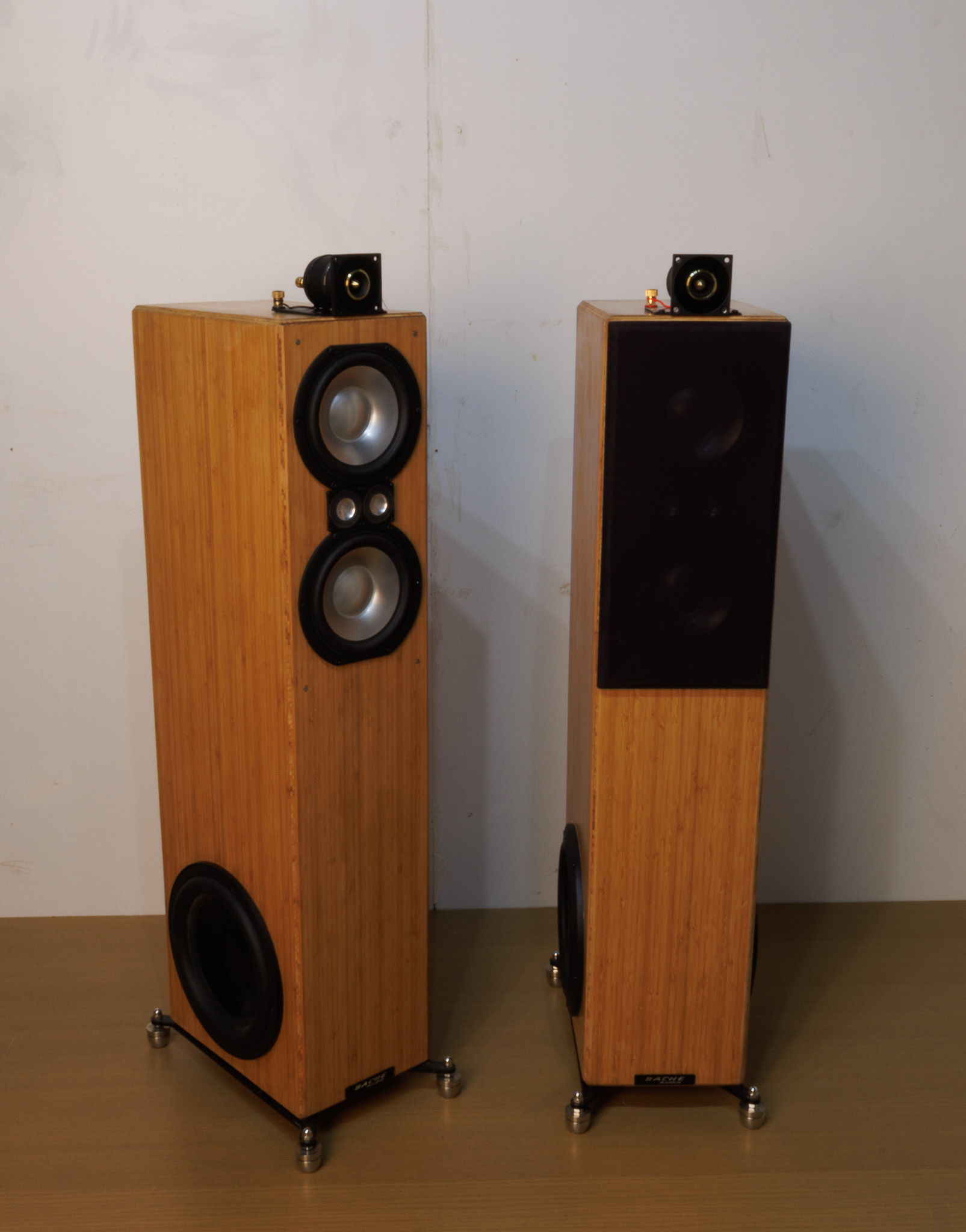

Bache Audio Sofia 104

The biggest and newest addition to our Sofia floorstanding speaker line. We use the same quasi-coaxial technology as found in our compact Sofia-101 bookshelf and midsize Sofia-102 floorstanders. In addition, we’ve added a 10” fiber wood cone woofer for extended low-frequency performance.

Like all other models in the Sofia line, this speaker design delivers an extremely smooth response both on and off-axis, while avoiding the phase and lobbing issues typically found in standard 2-way designs.

They also outperform single full-range drivers — even those with a whizzer cone intended to improve high-frequency reproduction.

Specifications

• Type: 3.5-way passive radiator enclosure
• Woofer: 10” wood fiber cone with neodymium magnet by Peerless, featuring low moving mass and low resonance frequency
• Tweeters: Two high-resolution aluminum/magnesium dome tweeters  with neodymium magnets.
• Midwoofers: Two 6.5” Peerless Superior Dynamic Sounds (SDS) Series aluminum cone drivers. Top and bottom drivers operate in different frequency ranges to compensate for baffle step effects. 7” additional passive radiator for 2 6.5 midwoofers installed on the back.
• Supertweeter Fostex installed on the top got 2 positions to adjust high frequency level.
• Crossover Points: 100 / 600 / 2000 / 12000 Hz (second-order design)
•  For woofer crossover we use  inductors with extremely low DC resistance (0.078 ohm) for tighter and more accurate bass
•
• Frequency Response: 28Hz–28kHz (±3dB)
• Nominal Impedance: 8 ohms (minimum 6.7 ohms)
• Sensitivity: 88 dB (2.83V/m)
• Recommended Amplifier Power: 20–120W
• Weight: 68 lb
• Dimensions: Speaker: 40” H × 8.5” W × 13” D; With outriggers: 41.5” H × 10” W × 16” D
• Cabinet Material: Bamboo ply / MDF sandwich construction 1” 25 mm total thickness
•  German Finite Element stainless  still  ball bearing speakers  pads
•
