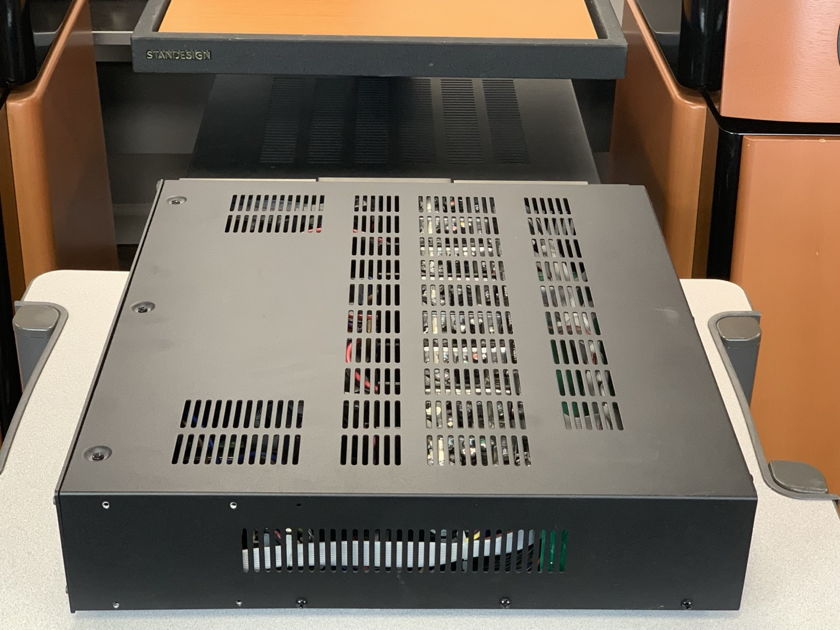

AudioControl Architect 2680EQ Open Box

The AudioControl Architect 2680EQ is a high-power, multi-zone amplifier. Its primary purpose is to drive speakers in a distributed audio system, often in residential custom installations or commercial settings.

Listing Product: (1) AudioControl Architect 2680EQ

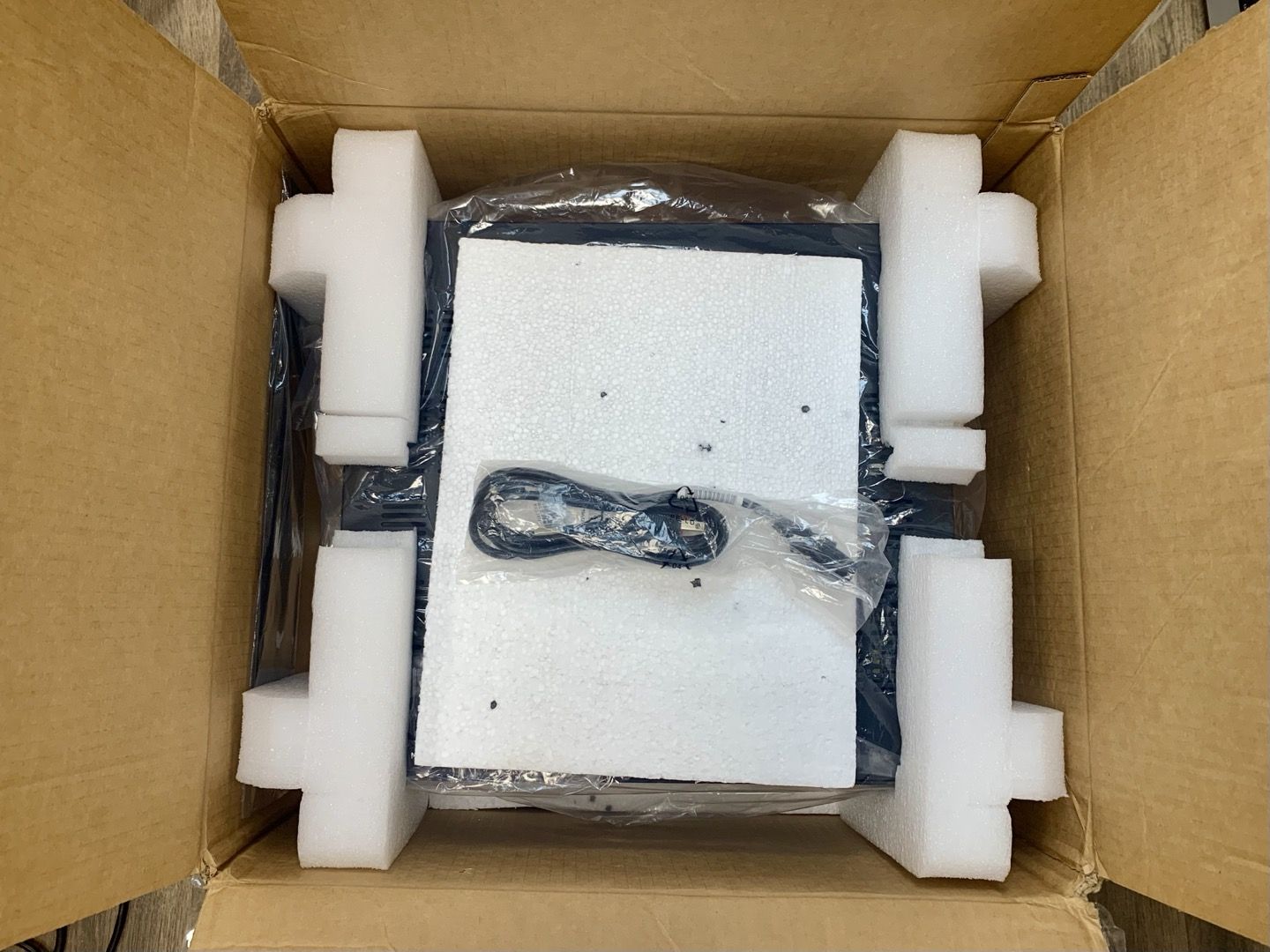

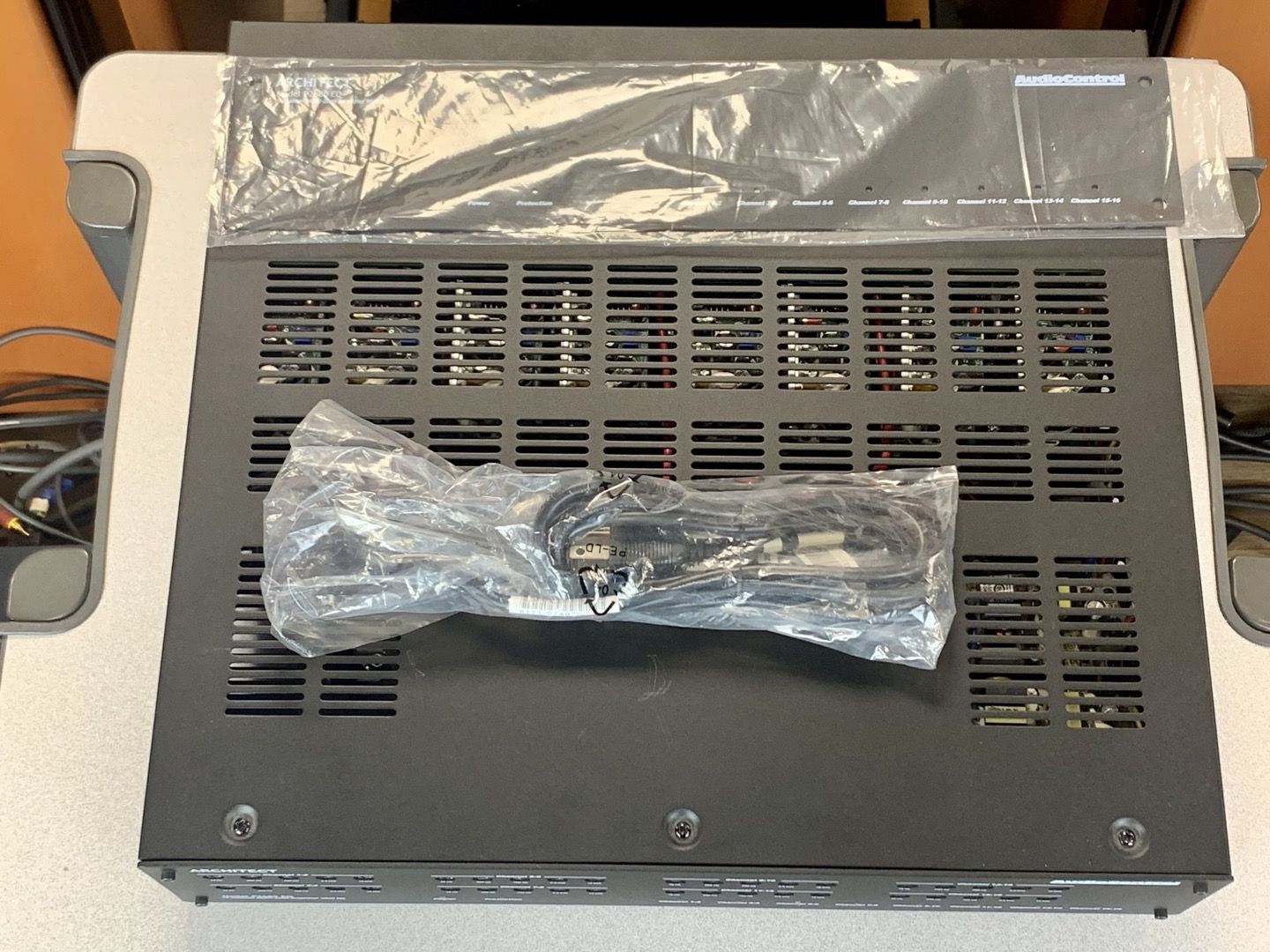

Included: (1)  Secondary Metal Faceplate (1) Original Shipping Box

Not Included: (2)  Rack Mount Ears (missing)

Functional Notes: the previous owner purchased and barely used the unit - almost never used. All functions flawlessly.

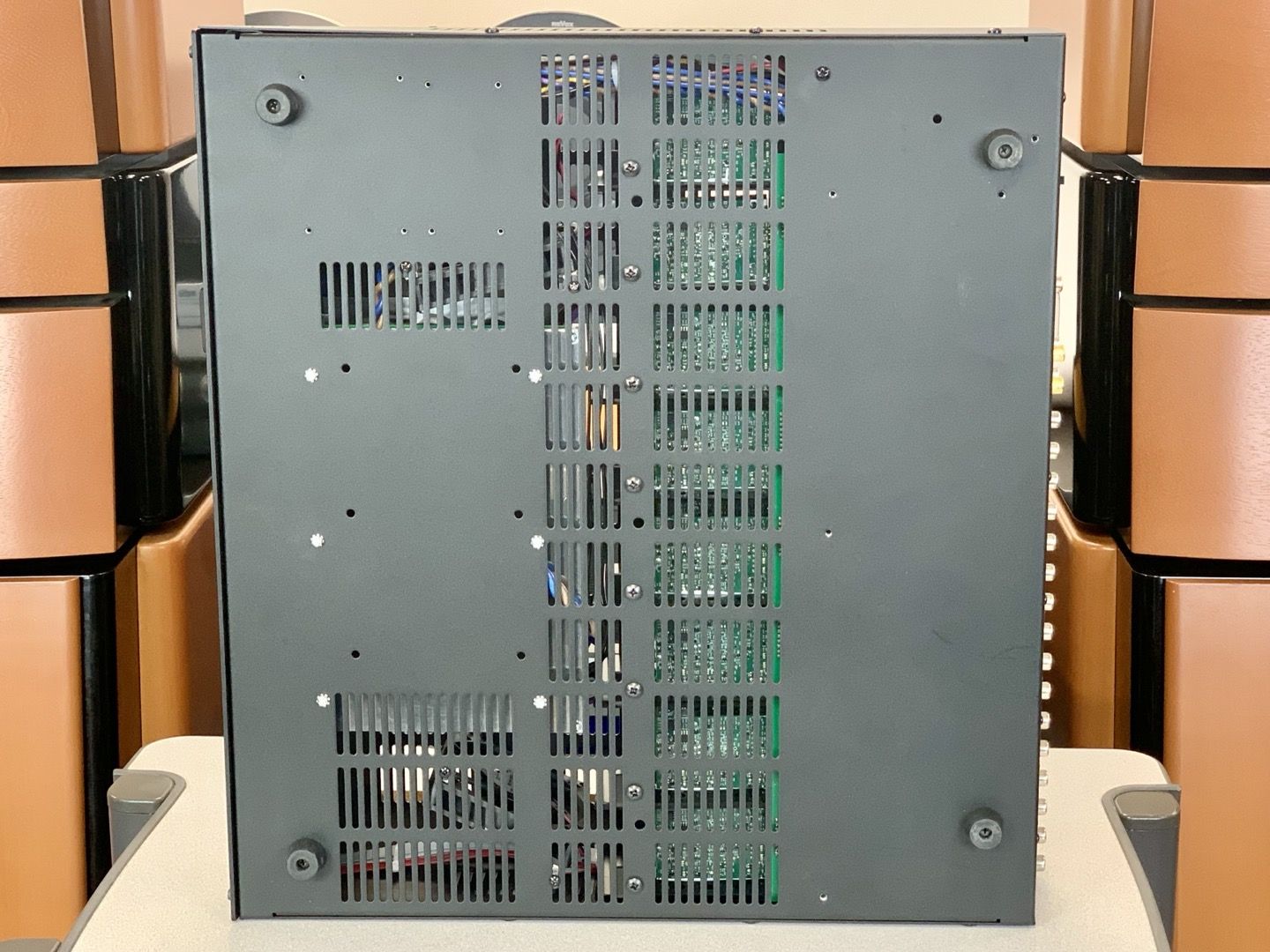

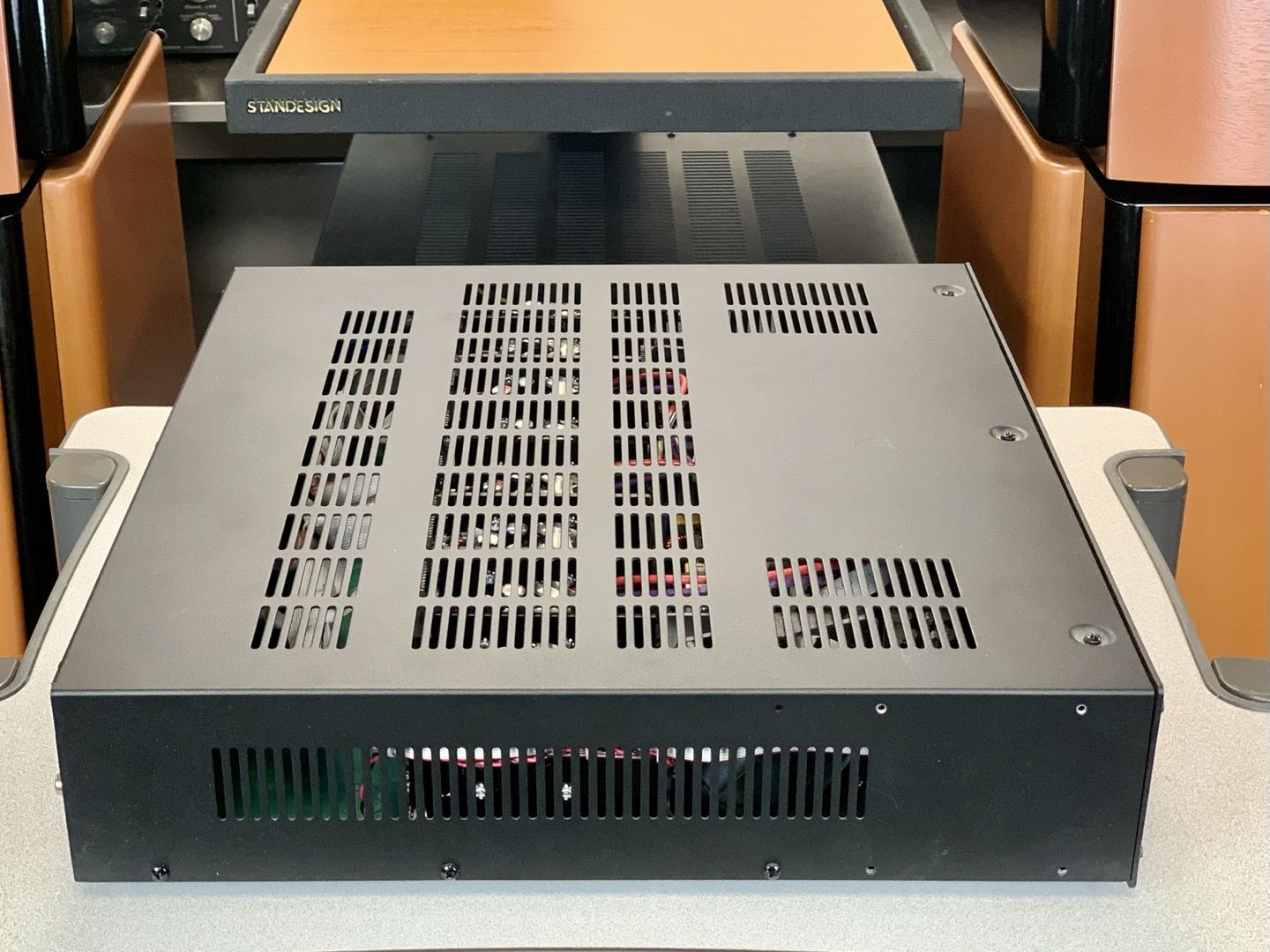

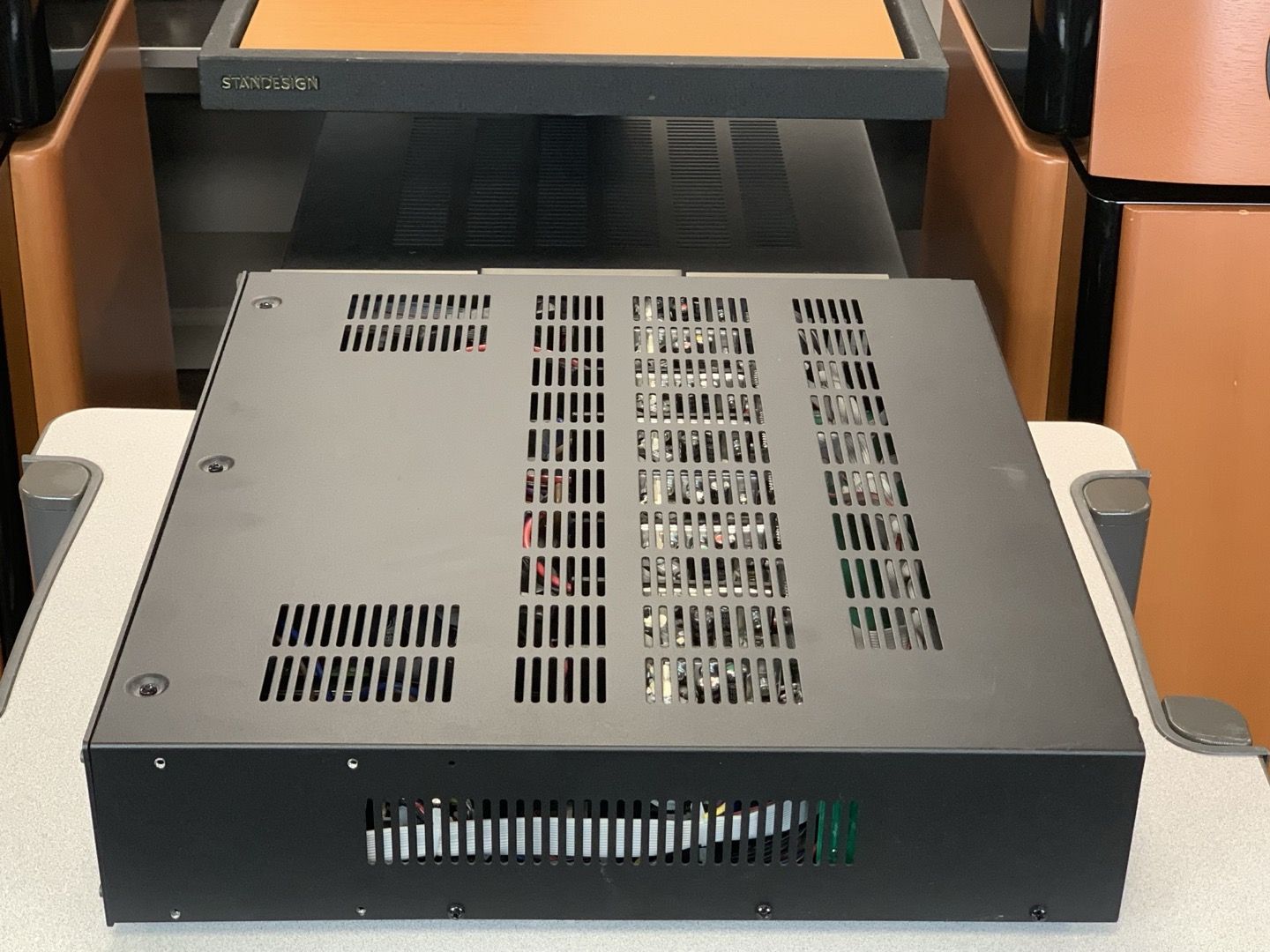

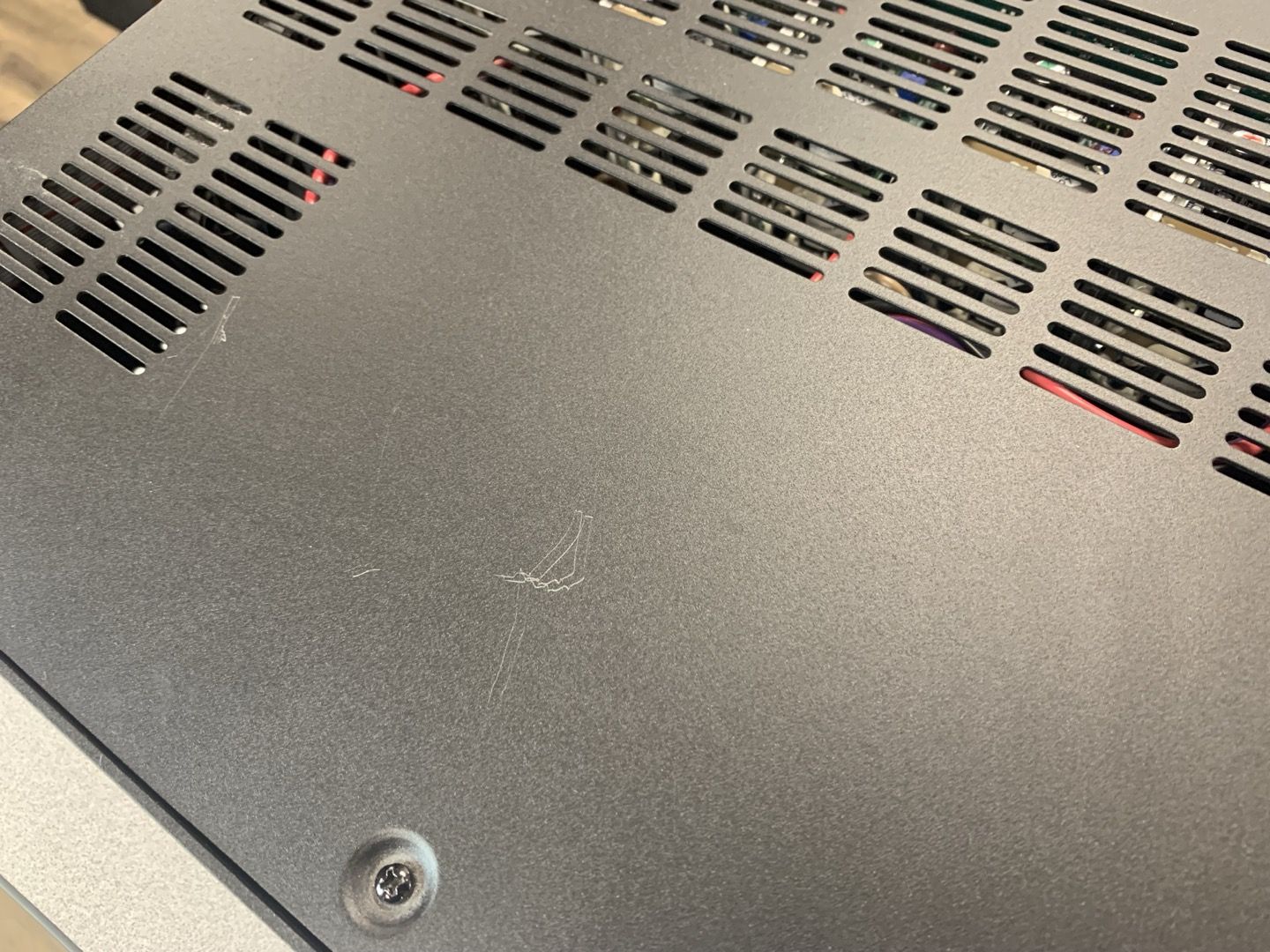

Cosmetic Description: The exterior is in mint condition minus couple of scuffs on the top. Refer to the images for a closer look, as there may be minor unmentioned imperfections. Internally, the components are clean and well-preserved.

The AudioControl Architect 2680EQ amplifier uses a Class H topology.

This is a specific type of amplifier design that is known for its high efficiency. Unlike a traditional Class AB amplifier, which has a fixed power supply, a Class H amplifier's power supply voltage can be adjusted based on the audio signal's demand. This allows it to run cooler and more efficiently, as it's not wasting energy by constantly supplying a high voltage when a lower voltage is sufficient. This is particularly important for a multi-channel, multi-zone amplifier like the 2680EQ, which may need to run for extended periods in a confined space like an equipment rack. The "cool running" nature of the Class H design helps to prevent overheating and ensures long-term reliability

Here are key highlights:

• High-Power, Multi-Zone Performance: This is a 16-channel amplifier designed to power up to 8 zones with a robust 100 watts RMS per channel into 8 ohms, and 200 watts into 4 ohms. You can also bridge channels to deliver a massive 400 watts.
• Precision Equalization: A standout feature is the 5-band, 16-channel speaker equalization. This allows for precise tuning of the audio in each zone, giving you the ability to compensate for room acoustics and perfect the sound.
• Installation-Friendly Design: The amplifier is built with custom installers in mind. It has a compact 2U rack-mount design, signal sensing on all channels, and input busing capability to simplify the setup for multi-source systems.
• Proprietary Protection Circuitry: The P2680 EQ features AudioControl's exclusive LightDrive™ anti-clipping protection, which safeguards your speakers from damage and ensures clean, distortion-free sound even at high volumes.
• LightDrive™ Anti-Clipping Protection: It uses AudioControl's proprietary LightDrive™ circuitry to prevent the amplifier from clipping, which protects speakers from damage and ensures the audio remains clean and free of distortion, even at high volumes.
• Flexible Connectivity: It includes a wide range of inputs, including local analog inputs for each zone, as well as a coaxial S/PDIF digital input and a stereo bus analog input, offering versatility for integrating various audio sources.
• Energy-Efficient Operation: The unit is designed to be cool-running and has a low standby current draw of less than 1 watt, making it efficient for long-term use.
• American-Made Quality: It is designed, engineered, and manufactured in Seattle, USA, and comes with a reputation for robust build quality and a 5-year warranty.

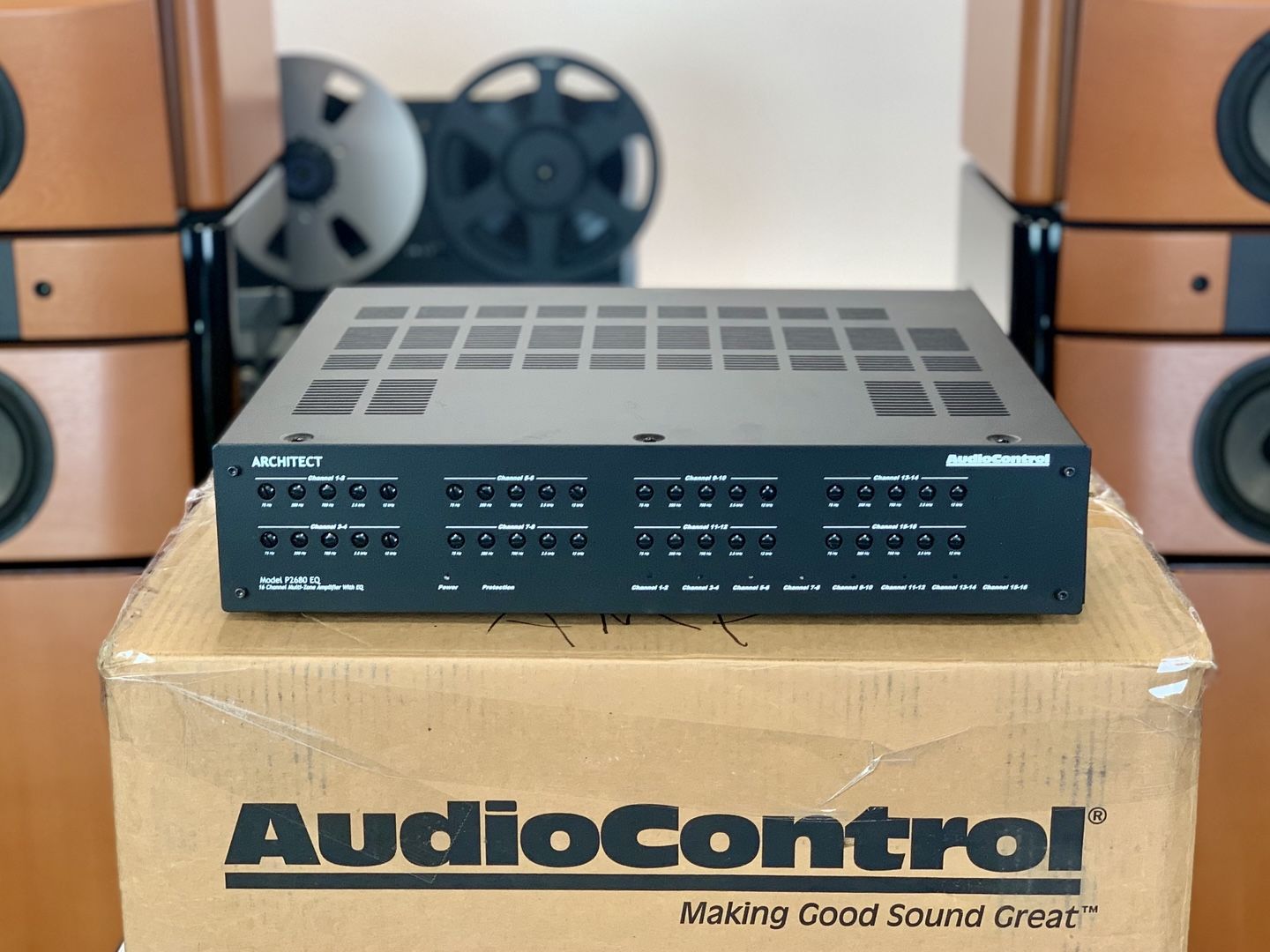

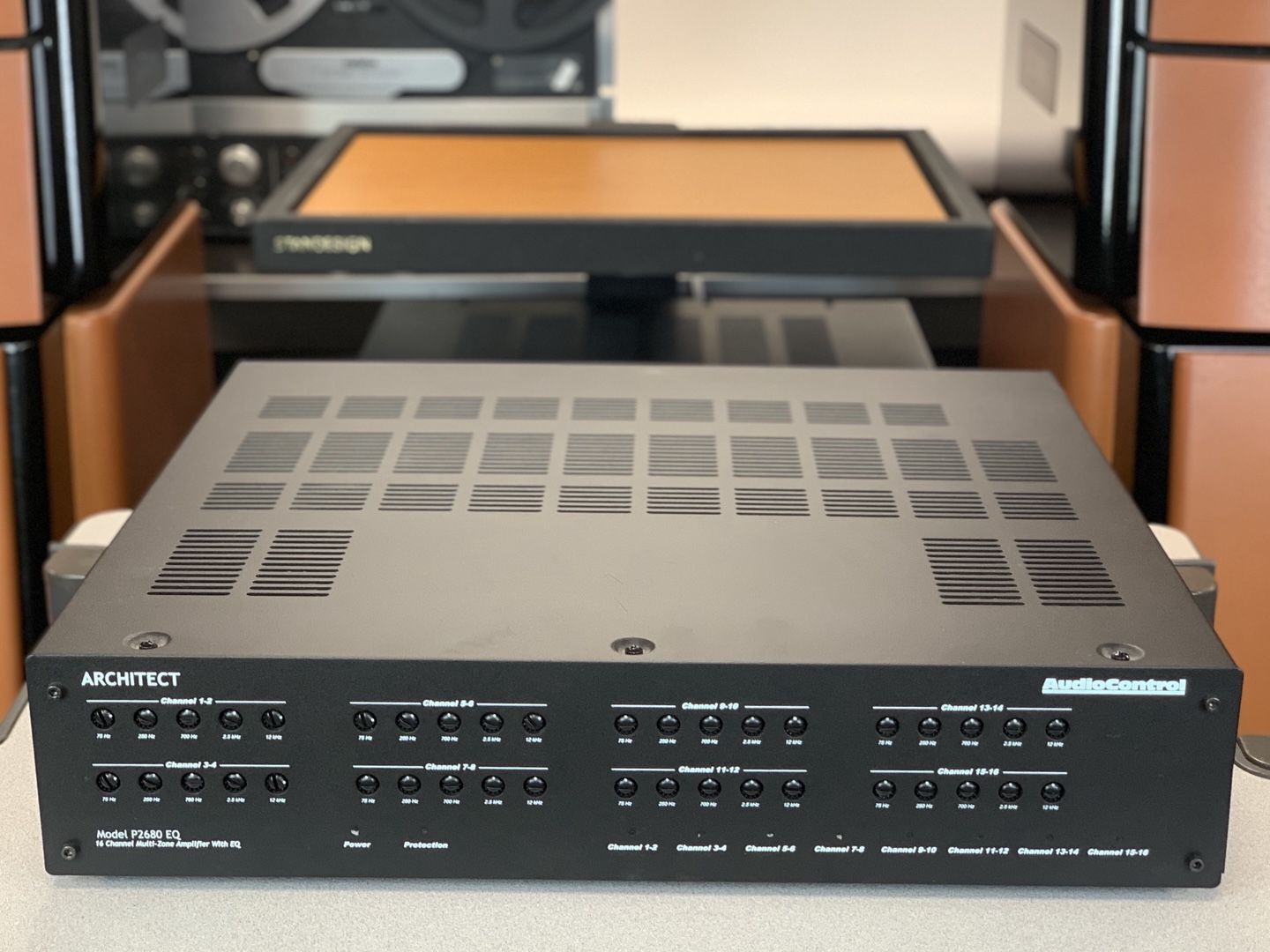

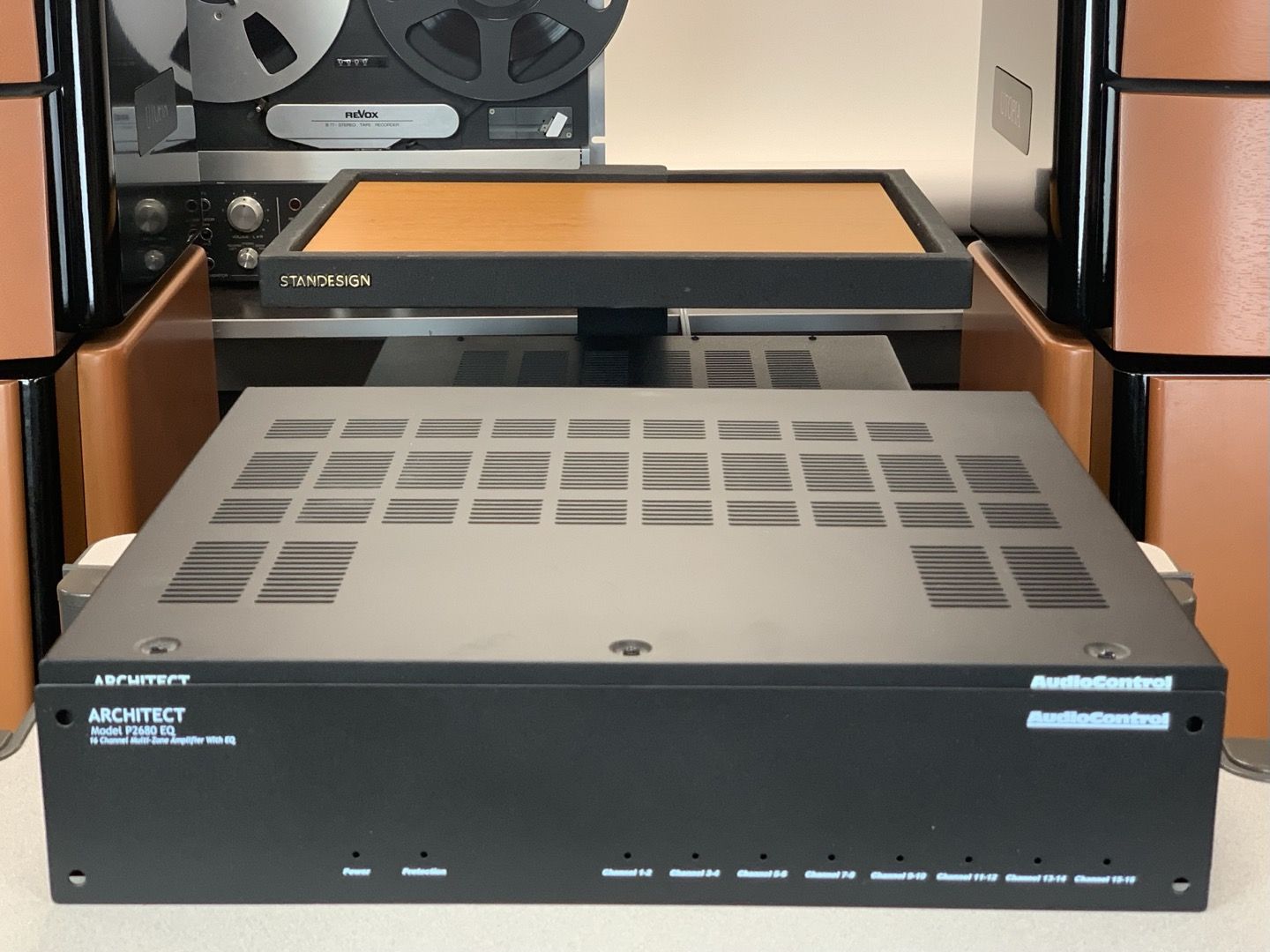

• Secure and Clean Appearance: The front-panel equalization controls can be hidden and protected with a magnetic security panel, providing a clean, tamper-proof finish once the system is configured.

Power and Performance:

• Channels: 16 channels, configurable into 8 bridged channels.
• Power Output (8Ω): 100 watts RMS per channel (all channels driven).
• Power Output (4Ω): 200 watts per channel (all channels driven).
• Power Output (Bridged Mono): 400 watts.
• Minimum Speaker Load: 4Ω
• Equalization: 5-band, 16-channel speaker equalization with a range of ±12 dB. The center frequencies are 75 Hz, 250 Hz, 700 Hz, 2.5 kHz, and 12 kHz.
• Signal-to-Noise Ratio: >105 dB (A-weighted, ref full output).
• Damping Factor: >300.
• Crosstalk: >80 dB @ 1kHz.
• Anti-Clipping Protection: Features AudioControl's proprietary LightDrive™ anti-clipping circuitry.

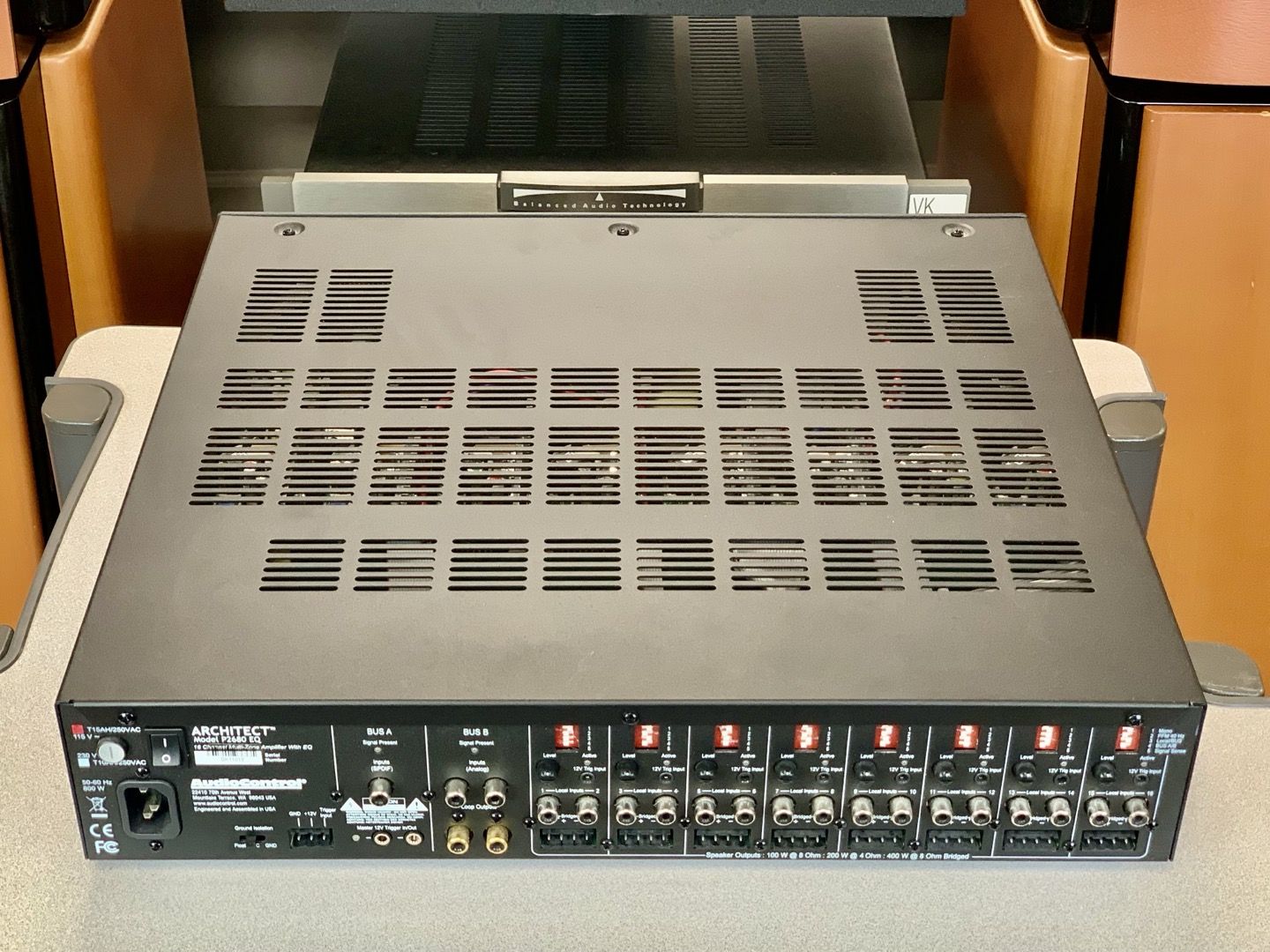

Inputs and Outputs:

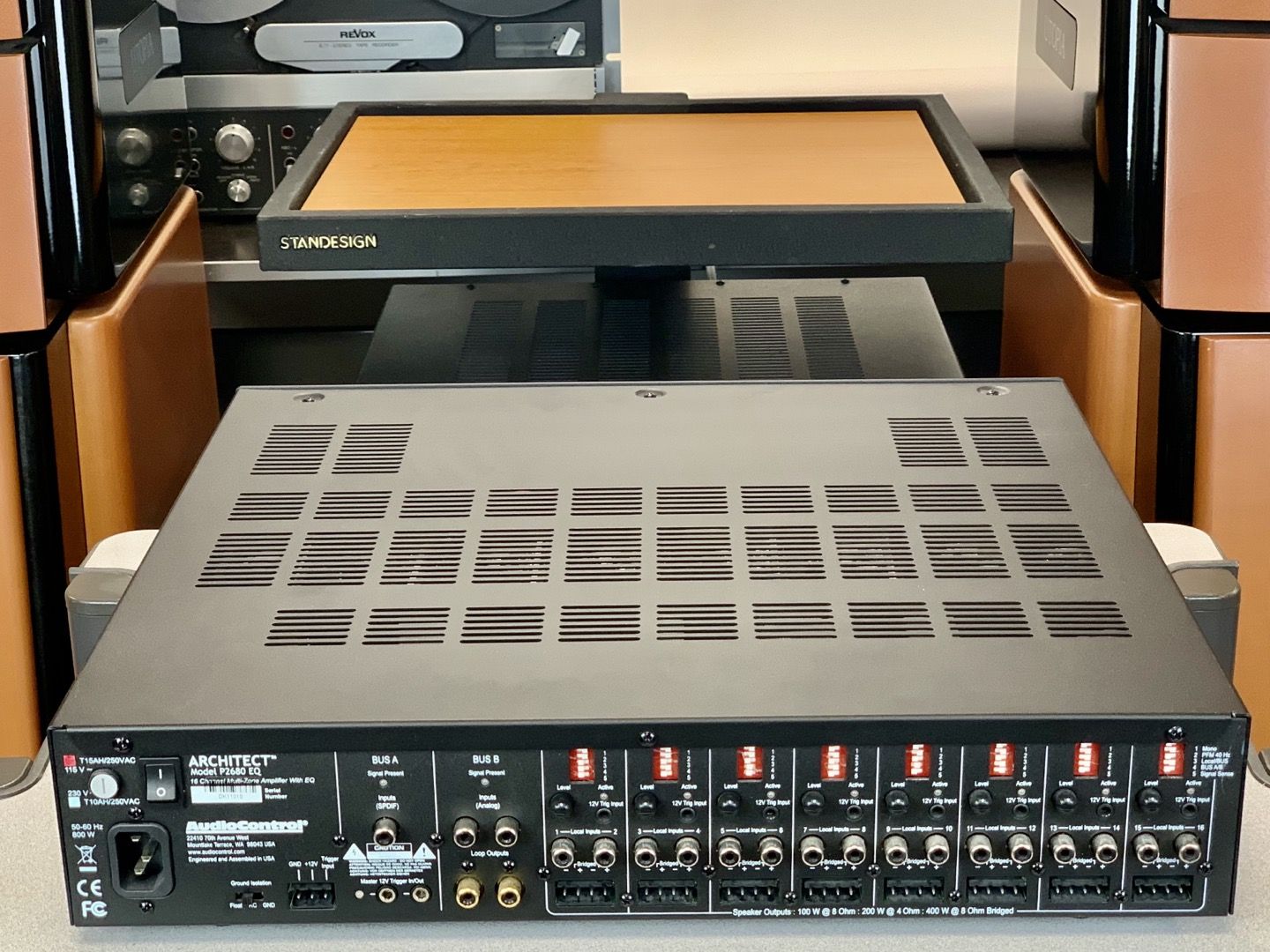

• Analog Inputs: 8 stereo local analog inputs, 1 stereo bus analog input.
• Digital Inputs: 1 stereo bus coaxial S/PDIF digital input.
• Input Sensitivity: Variable from 0-1 Vrms.
• Outputs: 16 amplifier channels, 1 stereo bus analog loop output.
• Trigger Inputs/Outputs: Master 12V trigger in/out, plus local 12V trigger inputs on all zones.

Additional Features:

• Design: Compact 2U rack-mount design.
• Energy Efficiency: Low standby current draw of less than 1 watt.
• Control: Front-panel equalization controls with a magnetic security panel.
• Switching: Input busing capability, signal sensing on all channels, and a mono-switch for bridging.
• Origin: Designed, engineered, and manufactured in Seattle, USA.
• Finish: Robust black powder coat.

Dimensions and Weight:

• Dimensions: 19″ W (with rack ears) x 15.5″ D x 3.5″ H (2U).
• Weight: 21.0 lbs (9.5 kg).
