iFi Audio - iDSD Diabolo Portable DAC and Headphone Amp | Save 35% - Only One At This Price!

Bit-Perfectly Wicked.

Utilizing two Burr-Brown DAC chips and the new 16-core XMOS chip to process the data received via the USB and S/PDIF digital inputs iDSD Diablo can handle up to PCM 768, DSD 512, 2xDXD with both PCM and DSD remain ‘bit-perfect’. It also provides full MQA decoding with support for Tidal, Roon, and Audirvana. With MQA now available over S/PDIF you can also take advantage of any MQA CDs in your collection.

Positively Pure & Diabolically Dynamic

Balanced, differential analog circuit design reduces noise and cross-talk within the signal path by fully separating the left and right channels. The iDSD Diablo benefits from further refinements to our balanced, symmetrical dual-mono topologies with short, direct signal paths. Additionally, the iFi team of engineers recognized that different parts of a circuit benefit from specifically optimized feedback loops and have developed a negative feedback system that is much more accurate than the usual approach. This incorporates multiple feedback paths instead of a global loop, each path optimized for a particular function and working synergistically with the others to deliver optimal overall performance. Creating an amp stage able to drive all manner of headphones with ease, the iDSD Diablo delivers up to 5000mW of prodigious power, propulsive energy and engaging dynamics, coupled with a remarkable ability to resolve fine texture and detail. With 3 settings, you can adjust power and gain to suit your daily driver or track-day supercar!

• Turbo – ramps up the level of drive for current-hungry headphones
• Normal – for most over or on-ear headphones
• Eco – dials down the power to suit high-sensitivity in-ear monitors

Hooking up with the Devil…

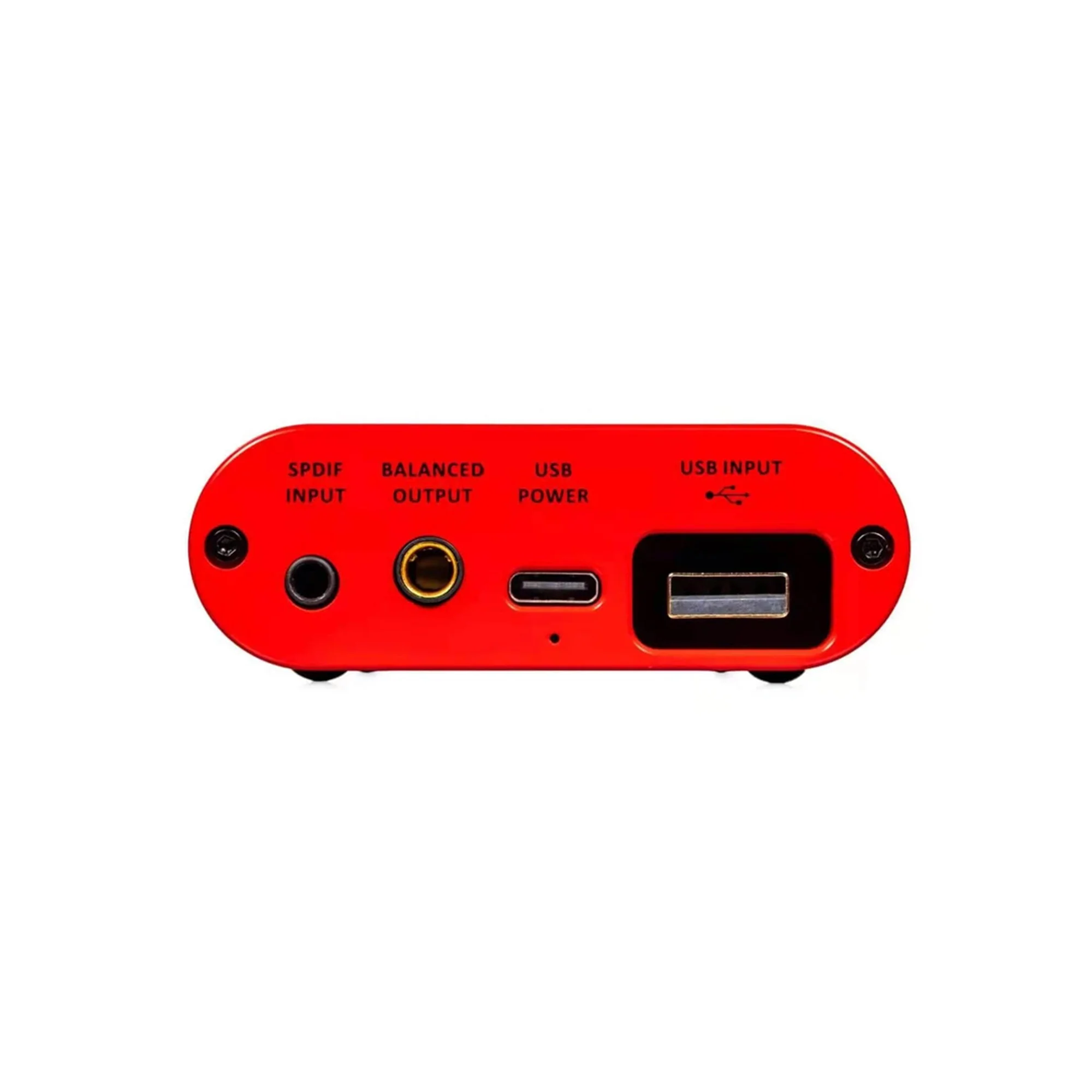

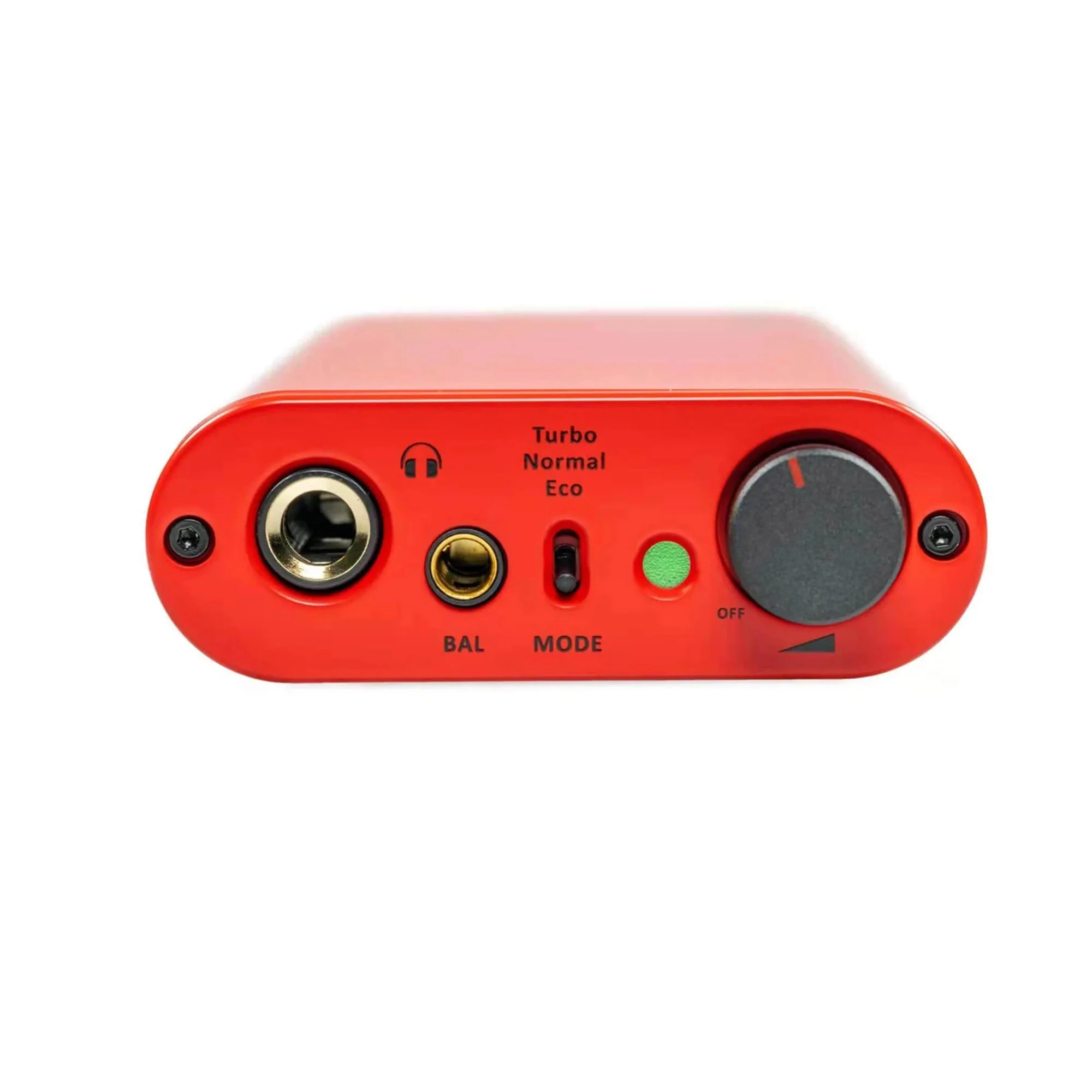

At the front of the unit, alongside a standard 6.3mm single-ended headphone socket, resides a 4.4mm Pentaconn output for headphones supporting a balanced connection. At the back are two digital audio inputs: USB-A and a S/PDIF socket that accepts both electrical and optical signals, the former via a 3.5mm connector and the latter via a supplied adapter. The USB-A input features a ‘male’ connector, rather than a typical ‘female’ port for greater mechanical integrity. A separate USB-C charging port is also provided, along with a 4.4mm Pentaconn balanced output to connect to an external amp.
